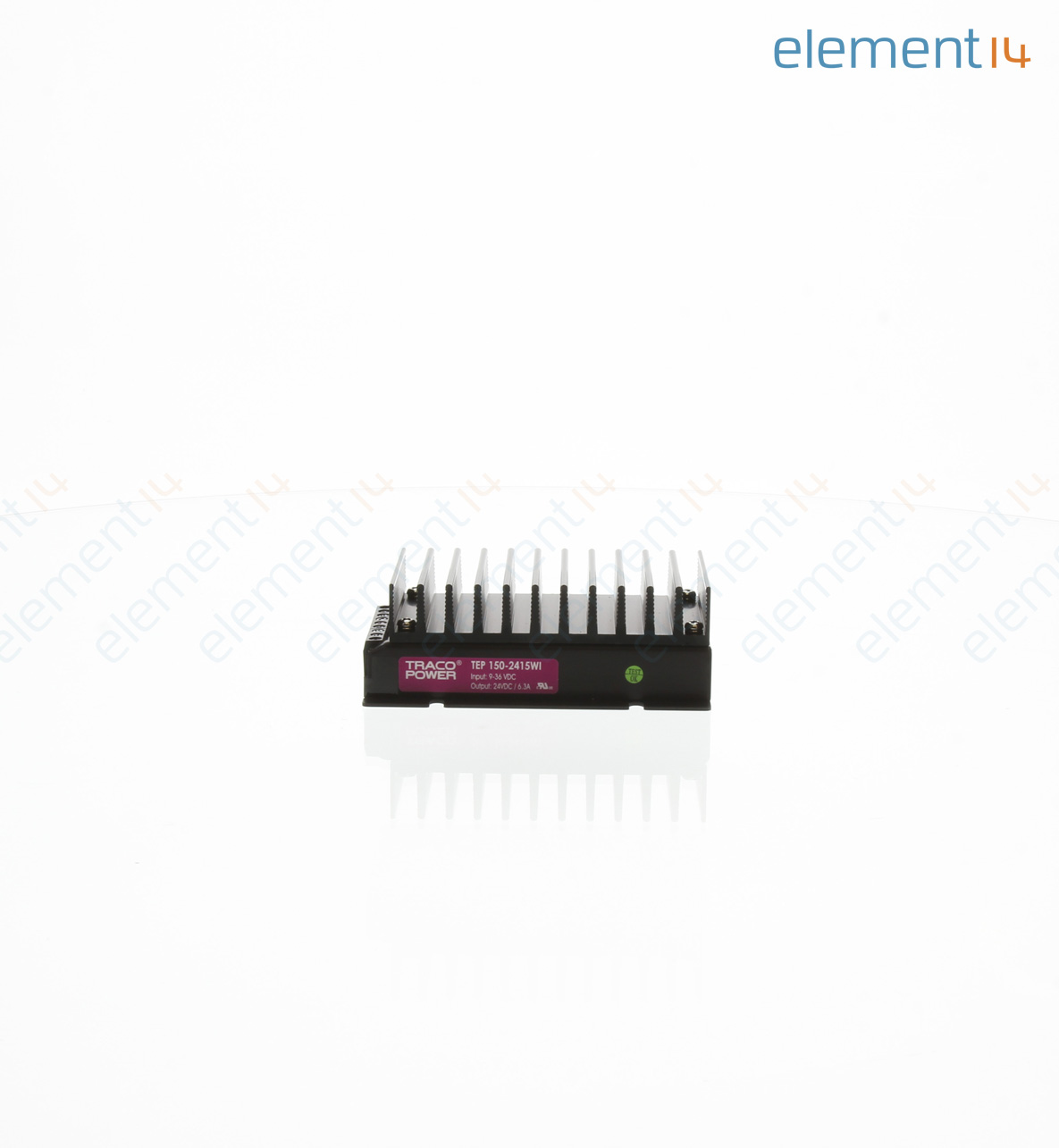

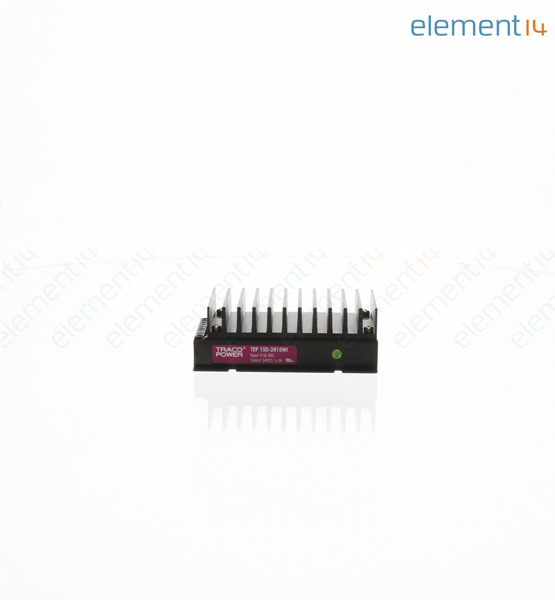

TEP 150-2415WI
Isolated Chassis Mount DC/DC Converter, Railway, 4:1, 150 W, 1 Output, 24 V, 6.3 A
- Manufacturer:
- TRACO POWER TRACO POWER
- Manufacturer Part No:
- TEP 150-2415WI
- Newark Part No.:
- 51R5022
- Product Range
- TEP 150WI
- Technical Datasheet:
- TEP 150-2415WI Datasheet
Product Range Selector (TEP 150WI)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Railway
- :
- 4:1
- :
- 1 Output
- :
- 150W
- :
- 24V
- :
- 6.3A
- :
- -
- :
- -
- :
- -
- :
- 2.25kV
- :
- Module
- :
- IEC, UL
- :
- 9V
- :
- 24V
- :
- 36V
- :
- Chassis
- :
- Fixed
- :
- 65mm
- :
- 35.7mm
- :
- 98mm
- :
- TEP 150WI
Technical Documents (7)
Product Overview
The TEP 150-2415WI is a 1-output chassis-mount DC/DC Converter features high EMC immunity against surge, burst, radiated and conducted disturbances and the shock/vibration and thermal shock resistance make it suitable for stringent requirements. At 100% load the current characteristics goes from constant voltage to constant current, makes it suitable for battery charger applications. With protection against over-temperature, overload, short-circuit, reverse input, overvoltage and input under-voltage lock-out it is hard to destroy.
- 24VDC Nominal input voltage
- Shielded metal case with screw terminals
- Optional with input filter to meet EN55022 class B
- Ultra-wide 4:1 input voltage range
- 87% Very high efficiency
- 2250VDC I/O isolation
- IP50 Protection rating
- ±0.02%/K Temperature coefficient
- 15A Input fuse
- -40 to +75°C Operating temperature range
Applications
Industrial, Power Management
US continental orders over $49 and under 50 pounds may qualify for free ground shipping. Click the link for the full Terms and Conditions of the offer.
Available for back order
×
21 more will be available on 8/7/23
17 more will be available on 12/6/23
12 more will be available on 12/26/23
43
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
$222.67
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
- 1+
- 5+
- 10+
- 25+
- 50+
| Quantity | Price | Your Price |
|---|---|---|
| 1+ | $222.67 | |
| 5+ | $200.84 | |
| 10+ | $194.29 | |
| 25+ | $189.93 | |
| 50+ | $185.56 | |
