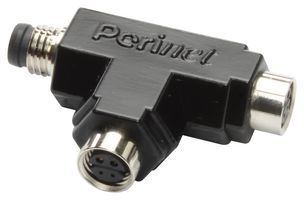

PRN.000.008

PRN.000.008 is a periSWITCH 3-port that facilitates the series bidirectional connection of multiple sensors and/or actuators. It, thereby, adds flexibility to the cabling topology (e.g. line, star etc.), enabling easy and straight-forward extension and adaptation to any given use case, setting or environment, from industrial production lines to commercial applications and smart building, to name but a few.

• 1 SPE hybrid IN (power and data)
• 2 SPE hybrid OUT (power and data)
• Facilitates series connection
• Enables field-level subdistribution
• 24V DC input power and 24V DC (±10%) input voltage (Power-in)
• 100BASE-T1 Single Pair Ethernet (IEEE 802.3bw) (power-in and 2 power out)
• 24V DC output power (2 power out)
• M8 male connector (power-in) and M8 female connector (2 power out)
