LCM-S01602DSF/F -

Alphanumeric LCD, InfoVue, 16 x 2, Black on Yellow / Green, 5V, Parallel, English, Japanese

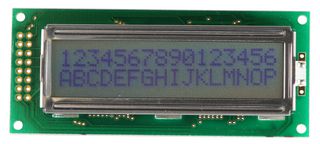

LCM-S01602DSF/F - Alphanumeric LCD, InfoVue, 16 x 2, Black on Yellow / Green, 5V, Parallel, English, Japanese

The actual product may differ from image shown

Manufacturer:
LUMEX LUMEX
Manufacturer Part No:
LCM-S01602DSF/F
Newark Part No.:
19J7638
Technical Datasheet:
(EN)
See all Technical Docs

Product Overview

The LCM-S01602DSF/F is a 5 x 8 dot matrix LCD Module with STN fluid, LED backlight and 1/5 bias driving method. The InfoVue™ family of LCD module offers a 16 x 2 characters per line, transflective polarizer and 6:00 viewing angle.
  • 0 to 50°C Operating temperature range

Applications

Imaging, Video & Vision

Product Information

:
16 x 2
:
Black on Yellow / Green
:
5V
:
Parallel
:
English, Japanese
:
Transflective
:
5.56mm
:
STN
:
85mm x 36mm
:
0°C
:
50°C
:
COB
:
Yellow / Green
:
Each
:
-
