FLUKE  FLUKE-177 ESFP  Handheld Digital Multimeter, 170 Series, 6000 Count, True RMS, Auto, Manual Range, 3.75 Digit

Manufacturer:
FLUKE FLUKE
Manufacturer Part No:
FLUKE-177 ESFP
Newark Part No.:
25C4800
Product Range
170 Series
Technical Datasheet:
See all Technical Docs

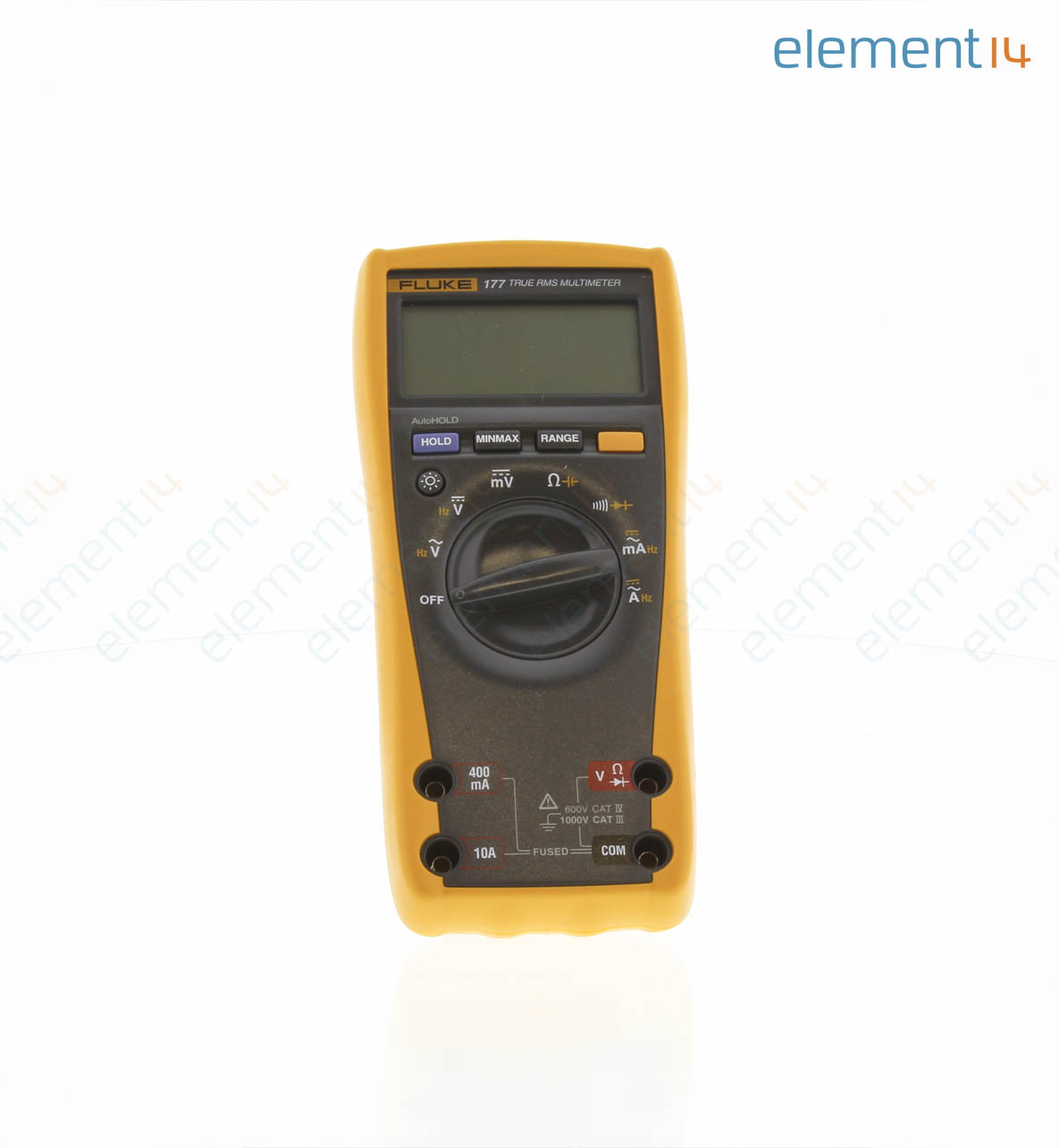

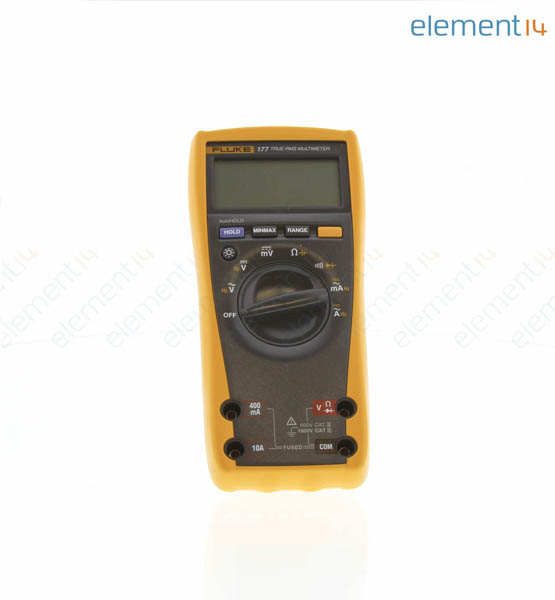

FLUKE FLUKE-177 ESFP
360°

The actual product may differ from image shown

Product Overview

With its precision, reliability and ease of use, the Fluke 177 Digital Multimeter is the preferred solution for professional technicians worldwide. Independently tested for safe use in CAT IV 600 V/ CAT III 1000 V environments, the Fluke 177 is the industry standard with all the features you need to troubleshoot and repair many problems in electrical and electronic systems.
  • Backlight for measurements in low visibility environments, backlight automatically turns off after 2 minutes to save battery life
  • Auto HOLD presents reading until it detects new stable input, then beeps and displays new reading for ease of use
  • Minimum, maximum, and average reading memory for accurate measurement recording without having to be present
  • Auto ranging automatically selects the range with the best resolution to simplify the measurement
  • Fast continuity/open detection - the beeper sounds with a stretched pulse for opens or shorts as brief as 250 µs
  • “LEAD” appears on the display when rotary switch is moved to or from any Amps position, helping to ensure leads are in the correct input jacks
  • Closed-case calibration; re-calibrate the meter without having to open the case
  • Comes with built-in probe holders for probe storage and added convenience when making measurements
  • Battery access door for battery replacement without voiding calibration

Product Information

DMM Functions:
AC/DC Current, AC/DC Voltage, Capacitance, Continuity, Frequency, Resistance, Temperature
Current Measure AC Max:
10A
Current Measure DC Max:
10A
Voltage Measure AC Max:
1kV
Voltage Measure DC Max:
1kV
Resistance Measure Max:
50Mohm
DMM Response Type:
True RMS
Display Count:
6000
No. of Digits:
3.75
Range Selection:
Auto, Manual
Warranty:
Lifetime Warranty
Product Range:
170 Series
Current Measuring Range AC:
0.01mA to 10A
DMM Type:
Hand Held
Voltage Measuring Range DC:
0.1mV to 1000V
Ranging:
Auto, Manual
Voltage Measuring Range AC:
0.1mV to 1000V
SVHC:
No SVHC (15-Jun-2015)
Current Measuring Range DC:
0.01mA to 10A

Find similar products  grouped by common attribute

Applications

  • Alternative Energy
  • Automotive
  • Avionics
  • Building Automation
  • Commercial
  • Defence, Military & Aerospace
  • HVAC
  • Industrial
  • Lighting
  • Maintenance & Repair

Contents

Fluke-177, Installed 9V battery, Test leads, User manual
