EXTECH INSTRUMENTS  461995  PHOTO TACHOMETER, 10 TO 99999RPM, 0.05%

Technical Data Sheet (197.85KB) EN See all Technical Docs

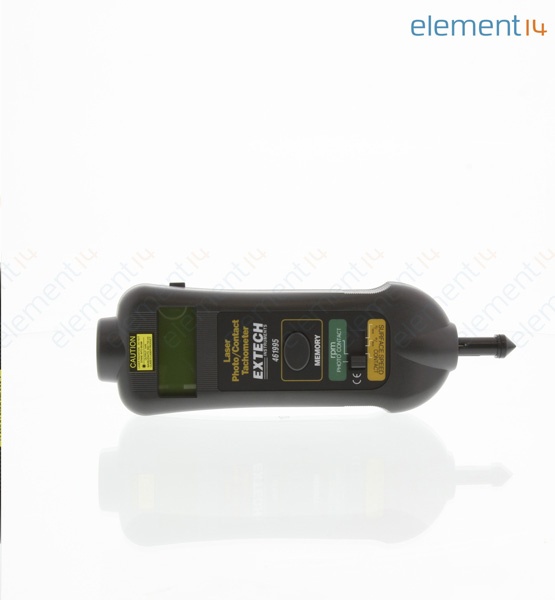

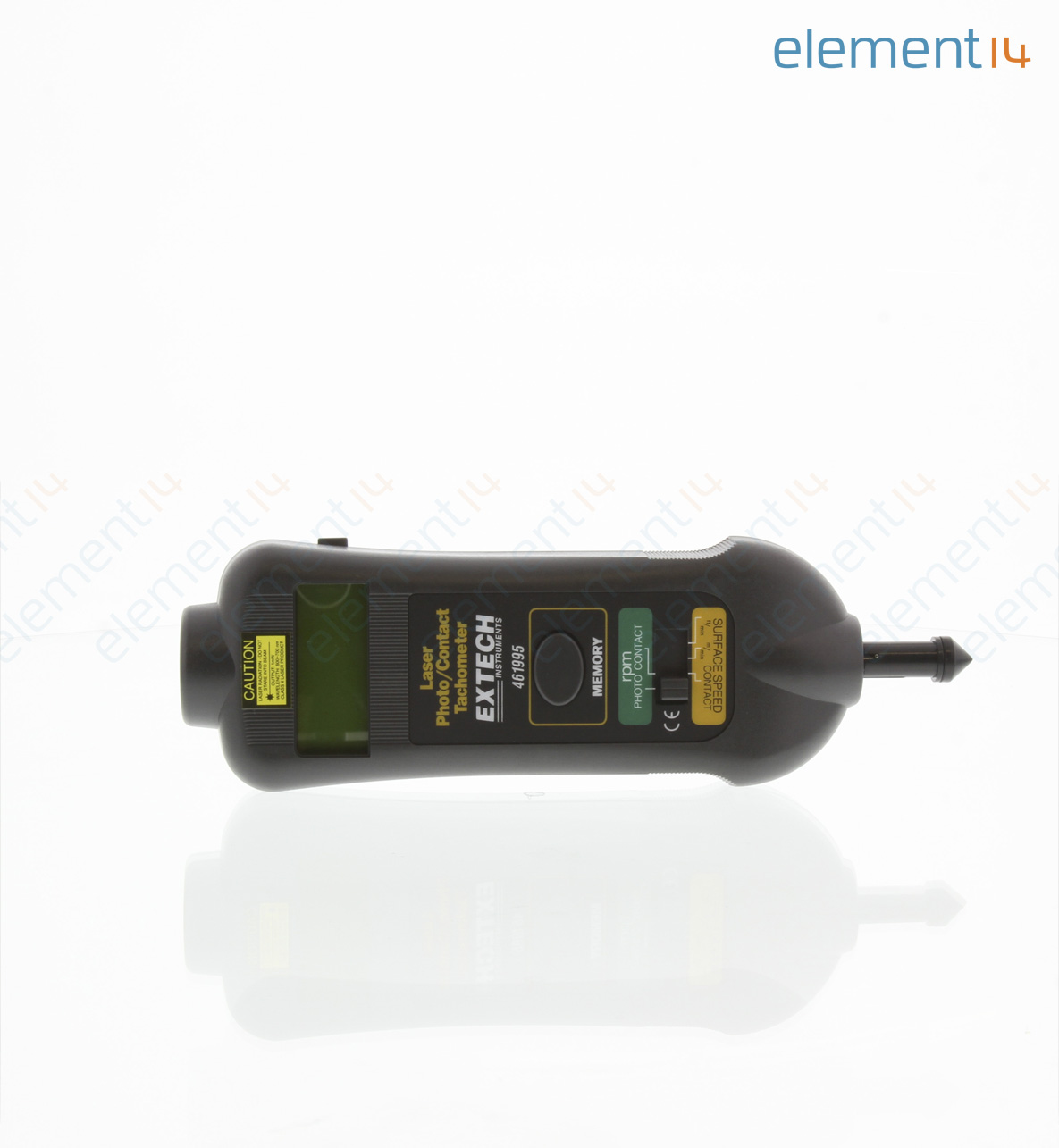

The actual product may differ from image shown

EXTECH INSTRUMENTS 461995
360°

Product Overview

Combination Photo/Contact Tachometers
  • Unique display where characters reverse direction depending on measurement mode you are in
  • Large 0.4” (5 digit) LCD display
  • Microprocessor based with quartz crystal oscillator to maintain high accuracy
  • Tachometer memory stores last, max and min readings
  • Provides wide RPM (photo and contact) and Linear Surface Speed (contact) measurements
  • Accurate to 0.05% with max resolution of 0.1rpm in either photo or contact mode
  • Narrow beam Laser photo tachometer for accurate non-contact RPM measurements
  • Measurements from up to 6.5ft from the target for improved safety and accessibility



Product Information

RPM Measuring Range:
0.5RPM to 20000RPM, 10RPM to 99999RPM
Accuracy %:
0.05%
External Height:
215mm
Sampling Time:
1s
External Width:
65mm
Detecting Distance Max:
-
External Depth:
38mm
Operating Temperature Min:
-
Operating Temperature Max:
-
Product Range:
-
Tach Display:
LCD
Kit Contents:
Laser Photo/Contact Tachometer, Tips and Wheel, Batteries, Reflective Tape
Tach Type:
Contact
Tach Features:
Memory
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Test & Measurement

Contents

Complete with tips and wheel for rpm or linear surface speed, four 1.5V AA batteries, reflective tape and carrying case

Also Known As

GTIN UPC EAN: 793950469958
