GD75PIY120C6SN
IGBT, 1.2KV, 117A, MODULE

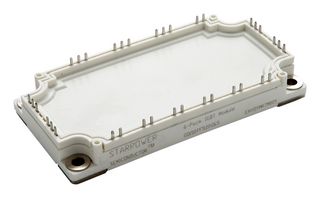

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 29 week(s)
| Quantity | Price |
|---|---|
| 1+ | $131.980 |
| 5+ | $129.450 |
| 10+ | $126.810 |
| 30+ | $125.490 |
| 50+ | $124.210 |
| 100+ | $119.020 |
Price for:Each
Minimum: 1
Multiple: 1
$131.98
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSTARPOWER
Manufacturer Part NoGD75PIY120C6SN
Newark Part No.84AH5755
Technical Datasheet
IGBT Configuration-
Transistor PolaritySeven N Channel
Continuous Collector Current117A
Channel TypeSeven N Channel
Collector Emitter Saturation Voltage2.15V
Power Dissipation Pd380W
Power Dissipation380W
Operating Temperature Max175°C
Transistor Case StyleModule
IGBT TerminationSolder Pin
No. of Pins35Pins
Collector Emitter Voltage Max1.2kV
IGBT TechnologyTrench
Transistor MountingPanel
Product Range-
SVHCTo Be Advised
Technical Specifications
IGBT Configuration
-
Continuous Collector Current
117A
Collector Emitter Saturation Voltage
2.15V
Power Dissipation
380W
Transistor Case Style
Module
No. of Pins
35Pins
IGBT Technology
Trench
Product Range
-
Transistor Polarity
Seven N Channel
Channel Type
Seven N Channel
Power Dissipation Pd
380W
Operating Temperature Max
175°C
IGBT Termination
Solder Pin
Collector Emitter Voltage Max
1.2kV
Transistor Mounting
Panel
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
