DM300021

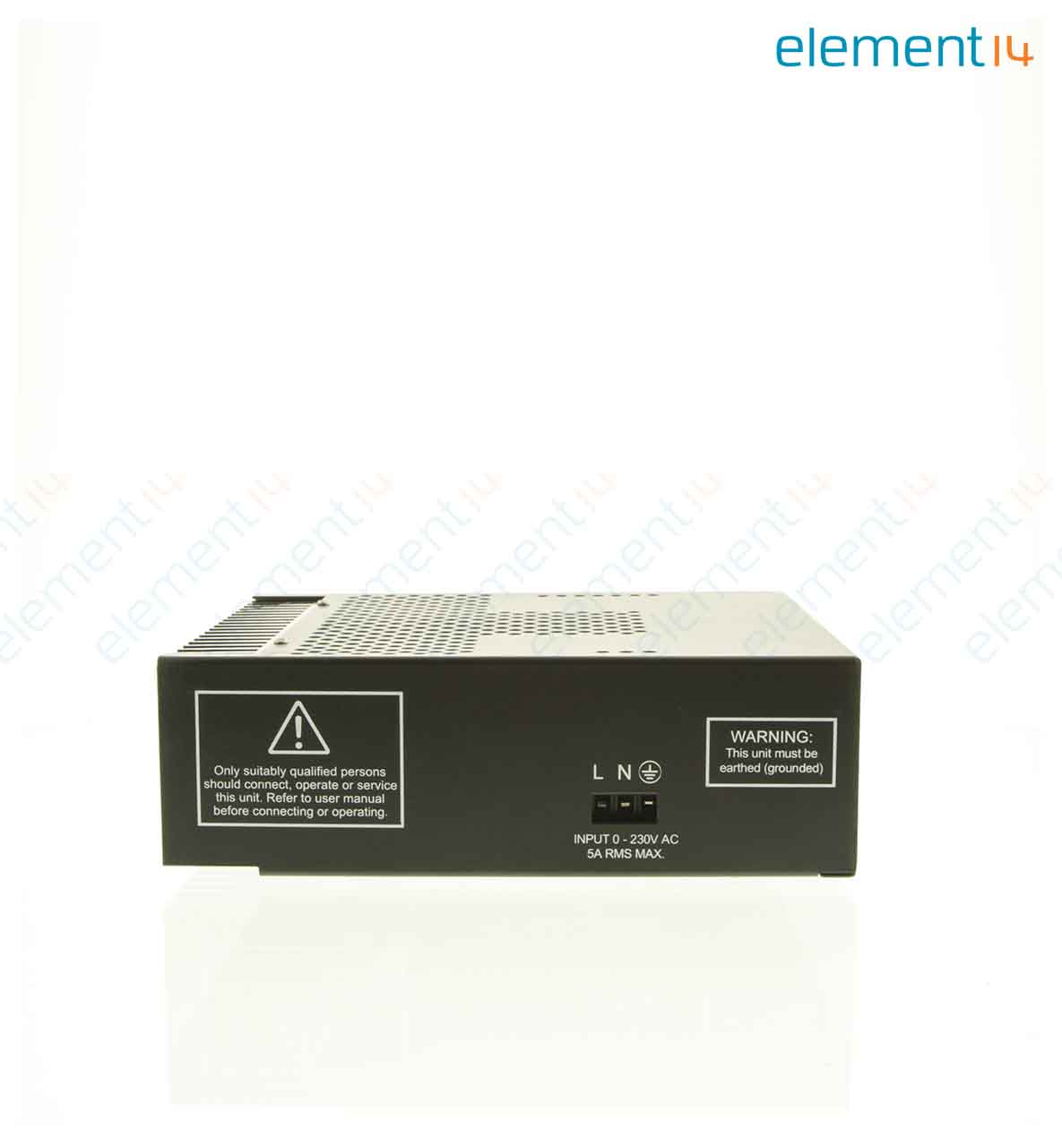

The DM300021 is a MC1H Three phase high voltage power module, The high voltage power module is optimised for three phase motor applications that require DC bus voltages up to 400volts and can deliver up to 1kW power output. The high voltage module has an active power factor correction circuit that is controlled by the dsPIC30F device. This power module is intended for AC induction motor and power inverter applications that operate directly from the AC line voltage.

• DsPIC30F6010 motor control MCU based board
• Three phase low voltage power module(optional)
• Three phase high voltage power module (optional)
• Heatsink for ambient cooling of power sections
• Full automatic protection of power circuits
• Electrical isolation from power circuits
• Many options for motor feedback signals

Aplicações

Motor Drive & Control, Power Management, Industrial, Automotive

Conteúdo

DsPICDEM MC1 Motor Control Development Board with Preprogrammed dsPIC30F Device, RS 232 Cable, Power Supply, Example Software and Documentation on CD.
