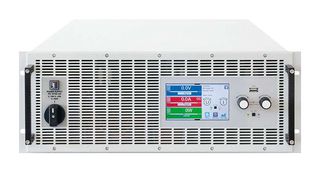

EA-PS 10500-180 4U

EA-PS 10500-180 4U is a PS 10000 4U series DC laboratory power supply that converts the energy from the grid into a regulated DC voltage with a high efficiency. The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a host-server bus. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions.

• Wide range input range from 208VAC - 480VAC +10 % 3ph
• Active power factor correction of typical 0.99
• High performance of 30KW per unit
• Voltage rating range from 0 - 500VDC
• Current rating range from 0 - 180A
• Regulation mode CV, CC, CP with fast crossover
• Digital regulation, high resolution with 16bit ADCs and DACs, selection of speed: normal, fast, slow
• Color 5“ TFT display with touch control and intuitive user interface
• Galvanically isolated share-bus for parallel operation of all power classes in the 10000 series
• Command languages and drivers: SCPI and ModBus, LabVIEW, IVI
