P100/2528/B

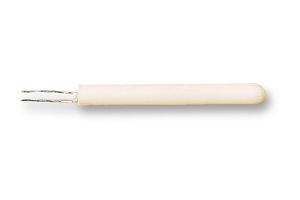

RTD Sensor, Platinum Wirewound Detector Element, -200 °C, +650 °C, 100 ohm, PT100 Series
- Manufacturer:
- LABFACILITY LABFACILITY
- Manufacturer Part No:
- P100/2528/B
- Newark Part No.:
- 09WX8034
- Product Range
- PT100 Series
- Technical Datasheet:
- P100/2528/B Datasheet
Product Range Selector (PT100 Series)
See all from this product rangeProduct Overview
P100/2528/B is a cylindrical detector element with platinum coil wire-wound construction sealed inside a high purity alumina ceramic body. This flat element features thick film technology giving particularly good vibration resistance and long term stability. Meets the requirements of BS1904 class B and DIN43760. Suitable for air and gas temperature measurement. It's also suitable for use within protective stainless steel tubular sheath.
- Single element, Pt100 (100 ohm at 0°C) sensor type
- Optimum performance and stability
- <0.003°C/mW self heating
- Pt100 elements to IEC 60751 Class B
- Temperature range from –200°C to +650°C
- Measuring current of 1mA
- Wire diameter / wire thickness is 0.210mm
Applications
Test & Measurement
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- -200°C
- :
- +650°C
- :
- 100ohm
- :
- PT100 Series
