BSC059N04LSGATMA1.
Power MOSFET, N Channel, 40 V, 73 A, 0.0049 ohm, PG-TDSON, Surface Mount

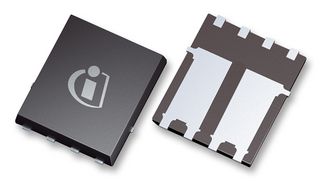

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoBSC059N04LSGATMA1.
Newark Part No.25AC6431
Your Part Number
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 54 week(s)
Fulfilled by Avnet
Notify me when back in stock
Product Information
ManufacturerINFINEON
Manufacturer Part NoBSC059N04LSGATMA1.
Newark Part No.25AC6431
Technical Datasheet
Transistor PolarityN Channel
Channel TypeN Channel
Drain Source Voltage Vds40V
Continuous Drain Current Id73A
On Resistance Rds(on)0.0049ohm
Drain Source On State Resistance0.0049ohm
Transistor MountingSurface Mount
Rds(on) Test Voltage10V
Power Dissipation Pd50W
Transistor Case StylePG-TDSON
Gate Source Threshold Voltage Max1.2V
Power Dissipation50W
No. of Pins8Pins
Operating Temperature Max150°C
Qualification-
Product Range-
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
Transistor Polarity
N Channel
Drain Source Voltage Vds
40V
On Resistance Rds(on)
0.0049ohm
Transistor Mounting
Surface Mount
Power Dissipation Pd
50W
Gate Source Threshold Voltage Max
1.2V
No. of Pins
8Pins
Qualification
-
MSL
MSL 1 - Unlimited
Channel Type
N Channel
Continuous Drain Current Id
73A
Drain Source On State Resistance
0.0049ohm
Rds(on) Test Voltage
10V
Transistor Case Style
PG-TDSON
Power Dissipation
50W
Operating Temperature Max
150°C
Product Range
-
SVHC
No SVHC (25-Jun-2025)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
