EC11B152442D

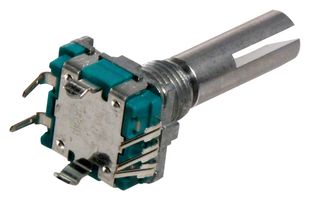

Rotary Encoder, Mechanical, Incremental, 15 PPR, 30 Detents, Vertical, With Push Switch

EC11B152442D - Rotary Encoder, Mechanical, Incremental, 15 PPR, 30 Detents, Vertical, With Push Switch
EC11B152442D - Rotary Encoder, Mechanical, Incremental, 15 PPR, 30 Detents, Vertical, With Push Switch
EC11B152442D - Rotary Encoder, Mechanical, Incremental, 15 PPR, 30 Detents, Vertical, With Push Switch

The actual product may differ from image shown

Manufacturer Part No:
EC11B152442D
Newark Part No.:
01M7598
Product Range
EC11B Series
Technical Datasheet:
EC11B152442D   Datasheet
See all Technical Docs

Product Overview

The EC11B152442D from Alps is an incremental type encoder. It is a low profile 11mm size rotary encoder for microscopic current circuits.
  • Number of pulse/turn is 15
  • Operating temperature range from -40°C to 85°C
  • Ratings 10mA at 5VDC
  • SPST contact configuration

Applications

Audio, Consumer Electronics, Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Mechanical

:
Incremental

:
15PPR

:
30 Detents

:
Vertical

:
With Push Switch

:
Quadrature

:
Bushing Mount, Through Hole

:
EC11B Series

:
-

:
2Channels

:
Slotted End

:
25mm

:
6mm

:
-

:
5V

:
-40°C

:
+85°C

:
Solder Pin

Find similar products Choose and modify the attributes above to find similar products.
