AMP FROM TE CONNECTIVITY  34853  Ring Tongue Terminal, PLASTI-GRIP Series, 10 AWG, 6 mm², M4, 8, PVC (Polyvinylchloride)

AMP FROM TE CONNECTIVITY 34853
Technical Data Sheet (45.68KB) EN See all Technical Docs

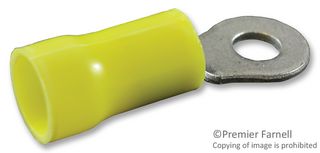

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The PLASTI-GRIP series Solderless Terminal and Splice designed specifically to answer the need for inexpensive, insulated electrical terminations. It accommodate wire sizes from 22AWG through 2/0AWG. Carefully engineered application tooling has been developed to ensure uniformly high quality terminations. Tool and terminal has been designed as a team to promote ease and speed of application and at the same time to provide precise crimping pressure for every wire size. The wire and the terminal barrel form a homogeneous mass of metal, providing a connection of maximum conductivity, tensile strength and high resistance to corrosion. The quality performance, the facility of installation and the inherent simplicity make them ideal for many industrial applications. PLASTI-GRIP products are available as rings, spades, flanged spaded, slotted rings, splices and several other varieties. Wire ranges for the terminals and splices are 22AWG through 2/0 and stud sizes from #2 through 1/2 inch.
  • Serrations in the crimp barrel provide maximum contact and tensile strength after crimping
  • 600V Operating voltage
  • 105°C Rated temperature



Product Information

Product Range:
PLASTI-GRIP Series
Wire Size AWG Max:
10AWG
Conductor Area CSA:
6mm²
Stud Size - Metric:
M4
Stud Size - Imperial:
8
Insulator Material:
PVC (Polyvinylchloride)
Insulator Colour:
Yellow
Contact Plating:
Tin
Series:
Plasti-Grip
Contact Material:
Copper
Stud/Tab Size:
#8
Termination Method:
Crimp
Connector Type:
Ring Tongue
SVHC:
To Be Advised
Wire Size AWG Min:
12 AWG

Find similar products  grouped by common attribute

Applications

  • HVAC;
  • Sensing & Instrumentation;
  • Lighting;
  • Power Management;
  • Logistics;
  • Motor Drive & Control

Legislation and Environmental

RoHS Compliant:
Yes
