TE CONNECTIVITY / AMP  206138-8  Circular Connector Clamp, Straight, CPC Series, 23 / M41, Thermoplastic, 17.86 mm

TE CONNECTIVITY / AMP 206138-8

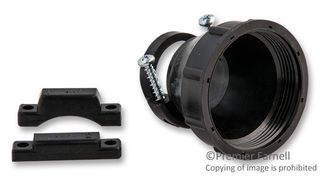

Image is for illustrative purposes only. Please refer to product description.

Product Overview


The 206138-8 from TE Connectivity is a cable clamp kit without cover. The cable clamp shell size is 23 and maximum cable diameter can withstand up to 17.86mm (0.703inch). It provides strain relief and can be threaded directly onto plugs, receptacles or backshell extenders. The clamping area can be adjusted by reversing clamping insert. This cable clamp is used with CPC series connectors.
  • Straight body style 
  • Made of black colour thermoplastic material
  • Cable clamping area of 2.54mm² to 10.41mm²
  • UL94 V-0 flammability rating 
  • Thread size of 1-3/8-18 UNEF-2B

Contents

Cable clamp, Two screws, Clamping inserts.

Product Range

Back to top

Product Information


  • Product Range CPC Series
  • Connector Shell Size 23 / M41
  • Strain Relief Material Thermoplastic
  • Cable Diameter Max 17.86mm
  • For Use With CPC Series Circular Plastic Connectors
  • Series CPC
  • SVHC To Be Advised

Find similar products  grouped by common attribute

View this product in our online catalog


This product also features on the following pages and catalog editions:

  •  131/925
  •  132/934

  • Drawing (65.70KB) EN
  • Availability

    Availability:  5,920


    • 5,920 in stock for same day shipping

    Check stock and lead times
      More stock available week commencing 7/4/16

    Price for: Each

    Minimum order quantity: 1

    Order multiple quantity: 1

    Price: $4.75 $4.75

    Buy

    Price

    Quantity List Price
    1 - 24 $4.75
    25 - 49 $3.60
    50+ $3.39
