ON SEMICONDUCTOR  1SS400T1G  Small Signal Diode, Switching, Single, 100 V, 100 mA, 1.2 V, 4 ns, 500 mA

ON SEMICONDUCTOR 1SS400T1G
Technical Data Sheet (45.53KB) EN See all Technical Docs

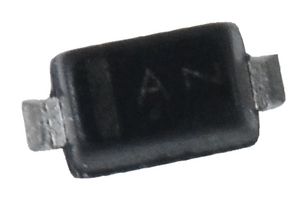

The actual product may differ from image shown

Product Overview

The 1SS400T1G is a small signal Switching Diode with 100% matte Sn (tin)-plated lead terminals. It is designed for high speed switching.
  • 260°C Qualified reflow temperature
  • AEC-Q101 qualified and PPAP capable
  • Pb-free, halogen free/BFR free



Product Information

Diode Configuration:
Single
Repetitive Reverse Voltage Vrrm Max:
100V
Forward Current If(AV):
100mA
Forward Voltage VF Max:
1.2V
Reverse Recovery Time trr Max:
4ns
Forward Surge Current Ifsm Max:
500mA
Operating Temperature Max:
150°C
Diode Case Style:
SOD-523
No. of Pins:
2Pins
Packaging:
Cut Tape
Product Range:
1SS40 Series
Automotive Qualifications Standard:
-
MSL:
MSL 1 - Unlimited
Operating Temperature Min:
-55 °C
SVHC:
No SVHC (17-Dec-2015)
Diode Type:
Small Signal

Find similar products  grouped by common attribute

Applications

  • Industrial

Legislation and Environmental

Moisture Sensitivity Level:
MSL 1 - Unlimited
Product Traceability
RoHS Compliant:
Yes
