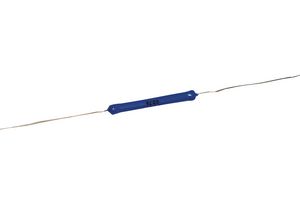

MOX-1-13-5006JE

The Maxi-Mox resistors from Ohmite are precision thick film axial terminal resistors with high voltage/high resistance. Maxi-Mox resistors are also versatile. Suitable for industrial applications requiring still more power for high voltage switching, industrial control and high voltage current limiting. Typical applications include HV power supplies, power distribution, medical instrumentation and avionics.

• Wide resistance ranges from 250 ohm to 1teraohm
• 10KV to 50KV voltage rating range, 2.0W to 12.5W power rating range
• Silicone or epoxy coating, alumina core
• 0.5%, 1%, 2%, 5%, 10%, 15% and 20% tolerance values
• 0.30pf to 0.75pf capacitance value
• Insulation resistance is <gt/>10,000Mohm or greater dry (MIL-STD-202, method 302, condition A or B)
• Operating temperature range from -55°C to +210°C
• Temperature coefficient is 25ppm/°C, 0° to 85°C air
• High voltage resistor
