MOLEX  33000-0002  Rectangular Power Contact, MX150 Series, Tin Plated Contacts, Tin, Pin, Crimp, 20 AWG

MOLEX 33000-0002

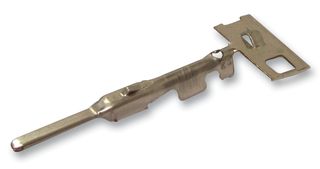

Image is for illustrative purposes only. Please refer to product description.

  • Manufacturer:
  • Newark Part No.: 56H6880
  • Manufacturer Part No 33000-0002

Product Overview


The 33000-0002 is a MX150™ male Crimp Terminal made of high performance alloy (HPA) with tin plated finish. This 33000 series male crimp terminal accepts 16, 18 and 20AWG wire. It can be used with 33482 dual row housing, 33481 single row housing and 33486 hybrid housing. The terminal is suitable for power applications.
  • 22A Maximum current per contact
  • 250V Maximum voltage

Applications

Automotive; Commercial; Industrial

Product Range

Back to top

Product Specifications, Documents & More


  • Contact Gender: Pin
  • Contact Material: Tin
  • Contact Plating: Tin Plated Contacts
  • Contact Termination: Crimp
  • Contact Termination Type: Crimp
  • Contact Type: Power
  • For Use With: 33482 Series Dual Row, 33481 Series Single Row, 33486 Series Hybrid Housing Connectors
  • Product Range: MX150 Series
  • SVHC: To Be Advised
  • Wire Size AWG Max: 16AWG
  • Wire Size AWG Min: 20AWG

Find similar products  grouped by common attribute

Availability

Availability:  53,075


  • 53,075 in stock for same day shipping

Check stock and lead times
    More stock available week commencing 3/28/16

Price for: Cut Tape 1

Minimum order quantity: 1

Order multiple quantity: 1

Price: $0.13 $0.13

Buy

Price

Quantity List Price
1 - 9 $0.13
10 - 24 $0.125
25 - 49 $0.094
50 - 99 $0.08
100 - 249 $0.078
250 - 499 $0.067
500 - 999 $0.064
1000+ $0.056


Low

Legislation and Environmental


Back to top

Similar Products


Find products functionally similar to this one. Select one of the following links, and you will be taken to a product group page that presents all products in this category that share the given attribute.

Back to top

Customer Reviews


Customer Q&A Exchange


(There are 2 questions : 2 answers on this product)

Product Q&A

Ask your questions. Share your answers.



Browse Q&A


Search Questions
Need Product Support?
If you need immediate technical support use Live Support or Contact Us.
This space is yours...
Use this space to Ask your peers product questions or Answer those questions posted by them.
Sort by
Details:
Can you recommend a hand crimp tool which can be used to crimp contact (part number 33000-0002)?
2 years, 10 months ago
by
NewarkTechSupp
0points
0out of 0found this question helpful.
Was this helpful?(0)(0)

Answers

A:
Suggested part number of hand crimp tool which can be used to crimp these contacts is 63811-2600 from Molex.
2 years, 10 months ago
by
NewarkTechSupport
0points
0out of 0found this answer helpful.
Was this helpful?(0)(0)
Details:
Can you suggest the extraction tool which can be used to extract damaged contacts (part number 33000-0002) from their housings?
2 years, 10 months ago
by
NewarkTechSupp
0points
0out of 0found this question helpful.
Was this helpful?(0)(0)

Answers

A:
Suggested part number of extraction tool which can be used to remove these contacts from their housings is 63813-1500 from Molex.
2 years, 10 months ago
by
NewarkTechSupport
0points
0out of 0found this answer helpful.
Was this helpful?(0)(0)
