JOHNSON  108-0750-001  BANANA PLUG, 15A, SOLDER

JOHNSON 108-0750-001

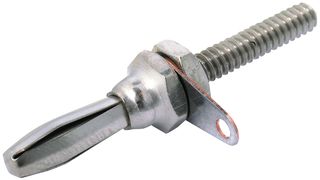

Image is for illustrative purposes only. Please refer to product description.

  • Manufacturer:
  • Newark Part No.: 39F888
  • Manufacturer Part No 108-0750-001

Product Overview


The 108-0750-001 is a 9.5mm Banana Plug with uninsulated panel mount, threaded stud, solder contact termination, brass (QQ-B-626D) body, nickel silver (QQ-C-585) spring, nickel finish, up to 0.25-inch (6.35mm), 0.625-inch (16mm) panel thickness, nickel-plated nut and stamped tin-plated solder terminal (unassembled). This banana plug is suitable for 0.166-inch (4.23mm) diameter standard banana jack.
  • Two stud lengths adapt to different panel sizes
  • Pierced hole for up to 14 gauge wire
  • 0.010Ω Maximum contact resistance

Applications

Test & Measurement
Back to top

Product Information


  • Product Range -
  • Gender Plug
  • Contact Termination Type Solder
  • Current Rating 15A
  • Voltage Rating -
  • Contact Plating Nickel Plated Contacts
  • Contact Material Brass
  • Connector Colour -
  • Connector Mounting Panel Mount
  • Connector Type Banana Plug
  • SVHC To Be Advised

Find similar products  grouped by common attribute

View this product in our online catalog


This product also features on the following pages and catalog editions:

  •  131/1129
  •  132/2262

  • Drawing (272.51KB) EN
  • Availability

    Availability:  15,907


    • 15,907 in stock for same day shipping

    Check stock and lead times
      More stock available week commencing 6/20/16

    Price for: Each

    Minimum order quantity: 1

    Order multiple quantity: 1

    Price: $2.42 $2.42

    Buy

    Price

    Quantity List Price
    1 - 9 $2.42
    10 - 49 $2.16
    50 - 99 $1.76
    100 - 249 $1.59
    250 - 499 $1.46
    500 - 749 $1.24
    750 - 999 $1.17
    1000+ $1.10
