HONEYWELL  BZ-2RW82212T  Microswitch, BZ Series, SPDT, Screw, 15 A, 480 VAC, 250 VDC

HONEYWELL BZ-2RW82212T
Technical Data Sheet (804.83KB) EN See all Technical Docs

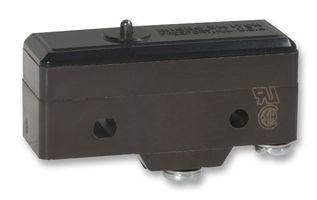

The actual product may differ from image shown

Product Overview

The BZ series MICRO SWITCH™ Snap-action Switch for precision on/off applications, irrigation systems, semi-trailer trucks, timing devices, office equipment, manually operated devices and valves.
  • Low operating force and differential travel
  • Long mechanical life up to 20,000,000 cycles at 95% survival
  • Elongated mounting hole for easier, more accurate mounting
  • Operating in extreme temperatures
  • UL, CSA, ENEC and CE Certified
  • Tight hysteresis/differential travel
  • Variants for extreme conditions
  • Enhanced performance
  • Easy installation reduces overall cost



Product Information

Product Range:
BZ Series
Contact Configuration:
SPDT
Switch Terminals:
Screw
Contact Current Max:
15A
Contact Voltage AC Nom:
480VAC
Contact Voltage DC Nom:
250VDC
Microswitch Actuator:
Roller Lever
Microswitch Type:
Standard
Operating Force Max:
1.67N
Actuator Style:
Roller Lever
Switch Operation:
-
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Communications & Networking;
  • Agriculture;
  • Medical;
  • Test & Measurement;
  • HVAC

Legislation and Environmental

Product Traceability
RoHS Compliant:
Yes
