ARDUINO.ORG  A000087  DEV BOARD, ATMEGA328, ARDUINO MINI 05 W/ HEADERS

Technical Data Sheet (69.55KB) EN See all Technical Docs

Image is for illustrative purposes only. Please refer to product description.

ARDUINO.ORG A000087
ARDUINO.ORG A000087
360°

Product Overview

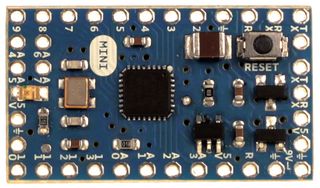

The A000087 Arduino Mini is a small microcontroller board intended for use on breadboards and when space is at a premium. The revision 05 has a new package for the ATmega328, which enables all components to be on the top of the board. It also has an onboard reset button. The 05 version has the same pin configuration as revision 04. The Arduino Mini board has 14 digital input/output pins (of which six can be used as PWM outputs), eight analog inputs, and a 16MHz crystal oscillator. It can be programmed with the USB serial adapter or other USB or RS 232 to TTL serial adapter.
  • ATmega328 MCU with 2KB SRAM, 1K EPROM memories
  • 16MHz crystal oscillator
  • 32KB flash memory of 2KB used for boot loader
  • 40mA DC current per I/O pin
  • 14 digital I/O pins of which six pins provide PWM output
  • New PCB layout and design
  • Onboard reset button
  • Input Voltage7-9V
Don't power the Arduino mini with more than 9V, or plug the power in backwards you'll probably kill it.



Product Information

Silicon Manufacturer:
Atmel
Core Architecture:
AVR
Core Sub-Architecture:
megaAVR
Silicon Core Number:
ATmega328
Silicon Family Name:
ATmega
Kit Contents:
Eval Board ATmega328
Product Range:
-
No. of Bits:
8bit
Features:
Atmega328 MCU, headers included for eazy protyping
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Sensing & Instrumentation;
  • Building Automation;
  • Industrial;
  • Embedded Design & Development
