857-357

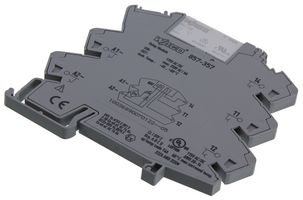

Power Relay, SPST, 115 VDC, 6 A, 857 Series, DIN Rail, DC
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWAGO
Manufacturer Part No857-357
Newark Part No.58P0634
Product Range857 Series
Also Known AsGTIN UPC EAN: 4045454694029
Your Part Number
Technical Datasheet
45 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $45.730 |
| 5+ | $43.230 |
| 10+ | $40.730 |
| 25+ | $38.880 |
| 50+ | $37.550 |
| 100+ | $36.140 |
Price for:Each
Minimum: 1
Multiple: 1
$45.73
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWAGO
Manufacturer Part No857-357
Newark Part No.58P0634
Product Range857 Series
Also Known AsGTIN UPC EAN: 4045454694029
Technical Datasheet
Contact ConfigurationSPST
Coil Voltage115VDC
Contact Current6A
Product Range857 Series
Relay MountingDIN Rail
Coil TypeDC
Contact Voltage VAC250V
Relay TerminalsScrew
Relay TypePower - General Purpose
Contact Voltage VDC24V
Contact MaterialSilver Nickel
Coil Resistance-
SVHCLead
Product Overview
The 857-357 is a general-purpose Pluggable Power Relay with SPST silver nickel contact and screw terminals. This 857-series relay socket with miniature switching relay for DIN 35 rail. It features industries smallest pitch, reduces panel space. Flexible jumping system eliminates redundant wiring. Safe operation with 3-way isolation.
- For easy placement
- -25 to 50°C Ambient temperature range
Applications
Industrial
Technical Specifications
Contact Configuration
SPST
Contact Current
6A
Relay Mounting
DIN Rail
Contact Voltage VAC
250V
Relay Type
Power - General Purpose
Contact Material
Silver Nickel
SVHC
Lead
Coil Voltage
115VDC
Product Range
857 Series
Coil Type
DC
Relay Terminals
Screw
Contact Voltage VDC
24V
Coil Resistance
-
