2201-1401

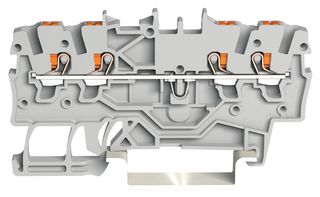

DIN Rail Mount Terminal Block, 4 Positions, 22 AWG, 14 AWG, 1.5 mm², Push In, 18 A
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWAGO
Manufacturer Part No2201-1401Copy
Manufacturer Standard Lead Time3 weeks
Newark Part No.07AH1644
Product RangeTOPJOB S 2201 Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 3 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $5.530 |
| 10+ | $3.930 |
| 25+ | $3.440 |
| 50+ | $3.140 |
| 100+ | $2.890 |
| 250+ | $2.630 |
| 500+ | $2.480 |
| 1000+ | $2.370 |
Price for:Each
Minimum: 1
Multiple: 1
$5.53
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWAGO
Manufacturer Part No2201-1401Copy
Manufacturer Standard Lead Time3 weeks
Newark Part No.07AH1644
Product RangeTOPJOB S 2201 Series
Technical Datasheet
No. of Positions4Positions
Wire Size AWG Min22AWG
Wire Size AWG Max14AWG
Conductor Area CSA1.5mm²
Wire Connection MethodPush In
Rated Current18A
Rated Voltage800V
No. of Levels1
Product RangeTOPJOB S 2201 Series
SVHCNo SVHC (04-Feb-2026)
Product Overview
The 2201-1401 from Wago is a grey 4 Conductor 35mm DIN rail through terminal block with push in cage clamp and push button. The new designed replaces the conventional 35mm screw terminal blocks making installation quick and easy.
- 35mm DIN rail mounted terminal block with push button and push-in CAGE CLAMP® technology
- Significant cost savings through the reduction of panel space & faster installation
- Push Button termination for simple faster installation
- Fits cable sizes: 0.25mm² to 2.5mm² / 14AWG to 22AWG
- Nominal cross section: 1.5mm²
- Nominal voltage: 800V
- Rated current: 17.5A
- Front entry wiring
- Screwless conenction
Technical Specifications
No. of Positions
4Positions
Wire Size AWG Max
14AWG
Wire Connection Method
Push In
Rated Voltage
800V
Product Range
TOPJOB S 2201 Series
Wire Size AWG Min
22AWG
Conductor Area CSA
1.5mm²
Rated Current
18A
No. of Levels
1
SVHC
No SVHC (04-Feb-2026)
