VEMT2020X01
Phototransistor, 860 nm, 15 °, 100 mW, 2 Pins
Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part NoVEMT2020X01
Newark Part No.
Re-Reel99R2120
Cut Tape99R2120
Your Part Number
55 In Stock
Need more?
Same day shipping
Order before 8pm EST standard shipping
Available in quantity shown
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | $0.065 | $0.06 |
| Total Price | $0.06 | ||
Cut Tape & Re-Reel
| Quantity | Price | Promotional price |
|---|---|---|
| 1+ | $0.731 | $0.065 |
| 10+ | $0.497 | $0.065 |
| 25+ | $0.467 | $0.065 |
| 50+ | $0.435 | $0.065 |
| 100+ | $0.404 | $0.065 |
| 250+ | $0.370 | $0.065 |
| 500+ | $0.336 | $0.065 |
| 1000+ | $0.324 | $0.065 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
Product Overview

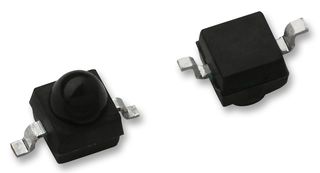

The VEMT2020X01 is a Silicon NPN Epitaxial Planar Phototransistor with daylight blocking filter in a miniature, black dome lens package for surface mounting. Filter bandwidth is matched with 830 to 950nm IR emitters.
- Surface mount
- AEC-Q101 qualified
- High radiant sensitivity
- Daylight blocking filter matched with 830 to 950nm IR emitters
- Fast response time
- ϕ = ±15° Angle of half sensitivity
- Package matched with IR emitter series VSMB2000X01
- 4 Weeks floor life, MSL 2a, according to J-STD-020
- Lead (Pb)-free reflow soldering
Applications
Sensing & Instrumentation, Automotive, Industrial
Technical Specifications
Wavelength Typ
860nm
Power Consumption
100mW
Transistor Case Style
-
Automotive Qualification Standard
AEC-Q101
SVHC
No SVHC (07-Nov-2024)
Viewing Angle
15°
No. of Pins
2Pins
Product Range
-
MSL
MSL 2A - 4 weeks
Technical Docs (3)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
