NTCALUG01A103F
Thermistor, NTC, 10 kohm, NTCALUG01A Series, 3984 K, Through Hole, Wire Leaded

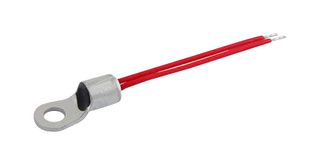

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | NTCALUG01A103FCopy |
| Manufacturer Standard Lead Time | 13 weeks |
| Newark Part No. | 82T4006 |
| Product Range | NTCALUG01A Series |
| Your Part Number | |
| Technical Datasheet |
1,721 In Stock
Need more?
FREE Standard Delivery
on orders over $150
Priority Delivery available
order before 8pm EST
| Quantity | Price |
|---|---|
| 1+ | $2.630 |
| 10+ | $2.520 |
| 25+ | $2.400 |
| 50+ | $2.310 |
| 100+ | $2.160 |
| 250+ | $2.150 |
| 500+ | $2.050 |
| 1000+ | $1.940 |
Price for:Each
Minimum: 1
Multiple: 1
$2.63
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | NTCALUG01A103FCopy |
| Manufacturer Standard Lead Time | 13 weeks |
| Newark Part No. | 82T4006 |
| Product Range | NTCALUG01A Series |
| Technical Datasheet | |
| Thermistor Type | Ring Lug |
| Resistance (25°C) | 10kohm |
| Resistance Tolerance (25°C) | ± 1% |
| Thermistor Mounting | Ring Lug |
| Product Range | NTCALUG01A Series |
| NTC Mounting | Free Hanging |
| Thermistor Case Style | - |
| B-Constant | 3984K |
| Thermistor Terminals | Wire Leaded |
| B-Constant Tolerance | ± 0.5% |
| NTC Case Size | - |
| Thermal Time Constant (in Air) | 5s |
| Probe Material | - |
| Probe Diameter | - |
| Lead Length | 38.1mm |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 150°C |
| Qualification | AEC-Q200 |
| Automotive Qualification Standard | AEC-Q200 |
| SVHC | No SVHC (16-Jan-2020) |
Product Overview
- Standard lug mount NTC thermistor sensor
- Easy mounting using ring tongue terminal
- Rugged construction
- PTFE insulation cable
- Suitable for surface sensing applications
- Automotive AEC-Q200 grade 1 qualified
- UL recognized (file E148885)
Technical Specifications
| Thermistor Type | Ring Lug |
|---|---|
| Resistance Tolerance (25°C) | ± 1% |
| Product Range | NTCALUG01A Series |
| Thermistor Case Style | - |
| Thermistor Terminals | Wire Leaded |
| NTC Case Size | - |
| Probe Material | - |
| Lead Length | 38.1mm |
| Operating Temperature Max | 150°C |
| Automotive Qualification Standard | AEC-Q200 |
| Resistance (25°C) | 10kohm |
|---|---|
| Thermistor Mounting | Ring Lug |
| NTC Mounting | Free Hanging |
| B-Constant | 3984K |
| B-Constant Tolerance | ± 0.5% |
| Thermal Time Constant (in Air) | 5s |
| Probe Diameter | - |
| Operating Temperature Min | -40°C |
| Qualification | AEC-Q200 |
| SVHC | No SVHC (16-Jan-2020) |
Technical Docs (2)
Alternatives for NTCALUG01A103F
1 Product Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (16-Jan-2020) |
