CNX_482_1_YTP_12
LED Panel Mount Indicator, Ruggedized, Yellow, 1.9 VDC, 10.1 mm, 20 mA, 380 mcd, NEMA 4
.jpg){kind=logo}
Image is for illustrative purposes only. Please refer to product description.
ManufacturerVCC / VISUAL COMMUNICATIONS COMPANY
Manufacturer Part NoCNX_482_1_YTP_12
Newark Part No.82T9870
Your Part Number
Technical Datasheet
183 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $14.280 |
Price for:Each
Minimum: 1
Multiple: 1
$14.28
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerVCC / VISUAL COMMUNICATIONS COMPANY
Manufacturer Part NoCNX_482_1_YTP_12
Newark Part No.82T9870
Technical Datasheet
LED ColorYellow
Operating Voltage1.9VDC
Mounting Hole Dia10.1mm
Forward Current If20mA
Luminous Intensity380mcd
IP / NEMA RatingNEMA 4
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview

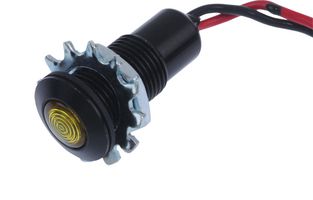

The CNX 482 1 YTP 12 is a yellow transparent panel-mount LED Indicator with black anodised aluminium alloy socket body and moisture seal. The socket body delivers NEMA-4 protection from the elements. It is designed for harsh and outdoor environments.
- Wide angle viewable
- Low profile for anti-vandalism
- Direct sunlight visibility
- Resistant to shock and vibration
- ESD protection
- UL94V-0 Flammability rating
Applications
Industrial, Signalling, Safety, Logistics, Defence, Military & Aerospace, Consumer Electronics
Technical Specifications
LED Color
Yellow
Mounting Hole Dia
10.1mm
Luminous Intensity
380mcd
Product Range
-
Operating Voltage
1.9VDC
Forward Current If
20mA
IP / NEMA Rating
NEMA 4
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
