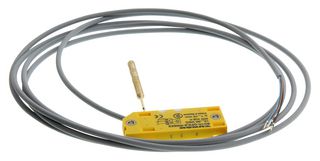

BC10-QF5.5-RN6X2

BC10-QF5.5-RN6X2 is a capacitive proximity sensor. It is designed for non-contact and wear-free detection of electrically conductive as well as nonconductive metal objects. Approved by UL (E210608).

• Height 5.5mm rectangular, plastic PP housing, large active face marked for correct installation
• Fine adjustment via potentiometer
• 10mm rated switching distance (flush/non-flush) and 3-wire NC contact, NPN output cable connection
• ≤ (0.72 × Sn) secured operating distance, 20% typ temperature drift
• Repeat accuracy is ≤ 2% of full scale, Ø 3mm, LifYY-11Y, PUR, 2m cable quality
• 30VDC operating voltage, ≤ 200mA DC rated operational current
• 0.1KHz switching frequency, 0.1KHz switching frequency
• Short-circuit protection
• ≤0.5kV isolation test voltage, ≤ 1.8V voltage drop at Io
• Dimension is 54 x 20.3 x 5.5mm, ambient temperature range from -25 to +70°C
