LRC-LRF1206LF-01-R010-F
SMD Current Sense Resistor, 10 mohm, LR Series, 1206 [3216 Metric], 500 mW, ± 1%, Thick Film

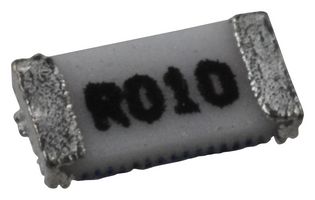

Image is for illustrative purposes only. Please refer to product description.
![TT ELECTRONICS / INTERNATIONAL RESISTIVE LRC-LRF1206LF-01-R010-F SMD Current Sense Resistor, 10 mohm, LR Series, 1206 [3216 Metric], 500 mW, ± 1%, Thick Film](https://www.newark.com/productimages/standard/en_US/88K2530-40.jpg)
ManufacturerTT ELECTRONICS / INTERNATIONAL RESISTIVE
Manufacturer Part NoLRC-LRF1206LF-01-R010-FCopy
Manufacturer Standard Lead Time28 weeks
Newark Part No.88K2530
Product RangeLR Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 28 week(s)
| Quantity | Price |
|---|---|
| 1000+ | $1.070 |
| 2000+ | $0.959 |
| 3000+ | $0.875 |
| 5000+ | $0.773 |
| 10000+ | $0.688 |
| 25000+ | $0.590 |
| 50000+ | $0.503 |
| 100000+ | $0.398 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1000
Multiple: 1000
$1,070.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTT ELECTRONICS / INTERNATIONAL RESISTIVE
Manufacturer Part NoLRC-LRF1206LF-01-R010-FCopy
Manufacturer Standard Lead Time28 weeks
Newark Part No.88K2530
Product RangeLR Series
Technical Datasheet
Resistance10mohm
Product RangeLR Series
Resistor Case / Package1206 [3216 Metric]
Power Rating500mW
Resistance Tolerance± 1%
Resistor TechnologyThick Film
Temperature Coefficient± 100ppm/°C
Product Length3.2mm
Product Width1.6mm
Product Height0.8mm
Operating Temperature Min-55°C
Operating Temperature Max150°C
QualificationAEC-Q200
SVHCNo SVHC (04-Feb-2026)
Technical Specifications
Resistance
10mohm
Resistor Case / Package
1206 [3216 Metric]
Resistance Tolerance
± 1%
Temperature Coefficient
± 100ppm/°C
Product Width
1.6mm
Operating Temperature Min
-55°C
Qualification
AEC-Q200
Product Range
LR Series
Power Rating
500mW
Resistor Technology
Thick Film
Product Length
3.2mm
Product Height
0.8mm
Operating Temperature Max
150°C
SVHC
No SVHC (04-Feb-2026)
Technical Docs (2)
Alternatives for LRC-LRF1206LF-01-R010-F
5 Products Found
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
