2003708-100F

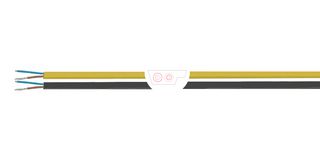

Networking Cable, Unshielded, 16 AWG, 1.5 mm², 100 ft, 30.5 m
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 3 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $116.000 |
| 5+ | $111.360 |
| 10+ | $106.720 |
Price for:Spool of 100
Minimum: 1
Multiple: 1
$116.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTKD KABEL
Manufacturer Part No2003708-100F
Newark Part No.14AM3266
Technical Datasheet
Cable ShieldingUnshielded
Wire Gauge16AWG
Conductor Area CSA1.5mm²
Reel Length (Imperial)100ft
Reel Length (Metric)30.5m
Jacket ColorBlack
No. of Max Strands x Strand Size84 x 34AWG
Voltage Rating300V
Jacket MaterialTPE
Conductor MaterialTinned Copper
External Diameter10mm
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
2003708-100F is a fieldbus cable for ASi (Actuator Sensor Interface) systems, in the field of factory automation, for connecting devices to the lowest field level (sensors, actuators), for fixed installation & flexible applications. Data and energy are transmitted via an unscreened, geometrically coded two-core flat cable.
- Standard acc. to EN 50295 / IEC 62026
- Black TPE cable
- 2 conductor 16AWG (1.5mm²) size
- Largely resistant to grease, coolant fluids and lubricants
- UV-resistant
- Optimized EMC compliant shielding
- Optimized EMC compliant shielding
- UL/CSA types : cURus 300V, 105°C approvals
- 100ft (30.48m) cable length
Technical Specifications
Cable Shielding
Unshielded
Conductor Area CSA
1.5mm²
Reel Length (Metric)
30.5m
No. of Max Strands x Strand Size
84 x 34AWG
Jacket Material
TPE
External Diameter
10mm
SVHC
No SVHC (27-Jun-2024)
Wire Gauge
16AWG
Reel Length (Imperial)
100ft
Jacket Color
Black
Voltage Rating
300V
Conductor Material
Tinned Copper
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
