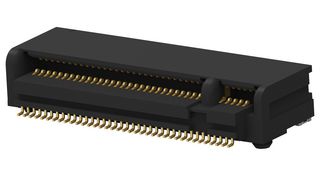

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | TE CONNECTIVITY |
|---|---|
| Manufacturer Part No | 1-2199230-5Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Newark Part No. | 96X8748 |
| Also Known As | M.2 0.5PITCH 4.2H KEY M 15U'' AU |
| Your Part Number | |
| Technical Datasheet |
3,191 In Stock
Need more?
FREE Standard Delivery
on orders over $150
Priority Delivery available
order before 8pm EST
| Quantity | Price |
|---|---|
| 1+ | $2.000 |
| 10+ | $1.730 |
| 25+ | $1.630 |
| 50+ | $1.560 |
| 100+ | $1.500 |
| 250+ | $1.420 |
| 500+ | $1.360 |
| 1000+ | $1.330 |
Price for:Each
Minimum: 1
Multiple: 1
$2.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY |
|---|---|
| Manufacturer Part No | 1-2199230-5Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Newark Part No. | 96X8748 |
| Also Known As | M.2 0.5PITCH 4.2H KEY M 15U'' AU |
| Technical Datasheet | |
| Card Edge Connector Type | Dual Side |
| Card Thickness | - |
| No. of Contacts | 67 Contacts |
| Connector Mounting | Surface Mount |
| Connector Body Orientation | Right Angle |
| Contact Termination Type | Solder |
| Contact Material | Copper Alloy |
| Contact Plating - Mating Side | 15µ" Gold Plated Contacts |
| Connector Body Material | Thermoplastic Body |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Technical Specifications
| Card Edge Connector Type | Dual Side |
|---|---|
| No. of Contacts | 67 Contacts |
| Connector Body Orientation | Right Angle |
| Contact Material | Copper Alloy |
| Connector Body Material | Thermoplastic Body |
| SVHC | No SVHC (04-Feb-2026) |
| Card Thickness | - |
|---|---|
| Connector Mounting | Surface Mount |
| Contact Termination Type | Solder |
| Contact Plating - Mating Side | 15µ" Gold Plated Contacts |
| Product Range | - |
Technical Docs (3)
Alternatives for 1-2199230-5
2 Products Found
Associated Products
8 Products Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
