SHIMPO INSTRUMENTS DT-205LR
Tachometer, 6RPM to 99999RPM, 1.8 ", 0.006 %, 2.4 ", 20 "
- Manufacturer:
- SHIMPO INSTRUMENTS SHIMPO INSTRUMENTS
- Manufacturer Part No:
- DT-205LR
- Newark Part No.:
- 93R4959
- Technical Datasheet:
- DT-205LR Datasheet
- ECAD / MCAD
-
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- 6RPM to 99999RPM
- :
- 0.006%
- :
- 1.8"
- :
- -
- :
- 2.4"
- :
- 6.6"
- :
- 20"
- :
- 0°C
- :
- 45°C
- :
- -
Technical Documents (1)
Product Overview

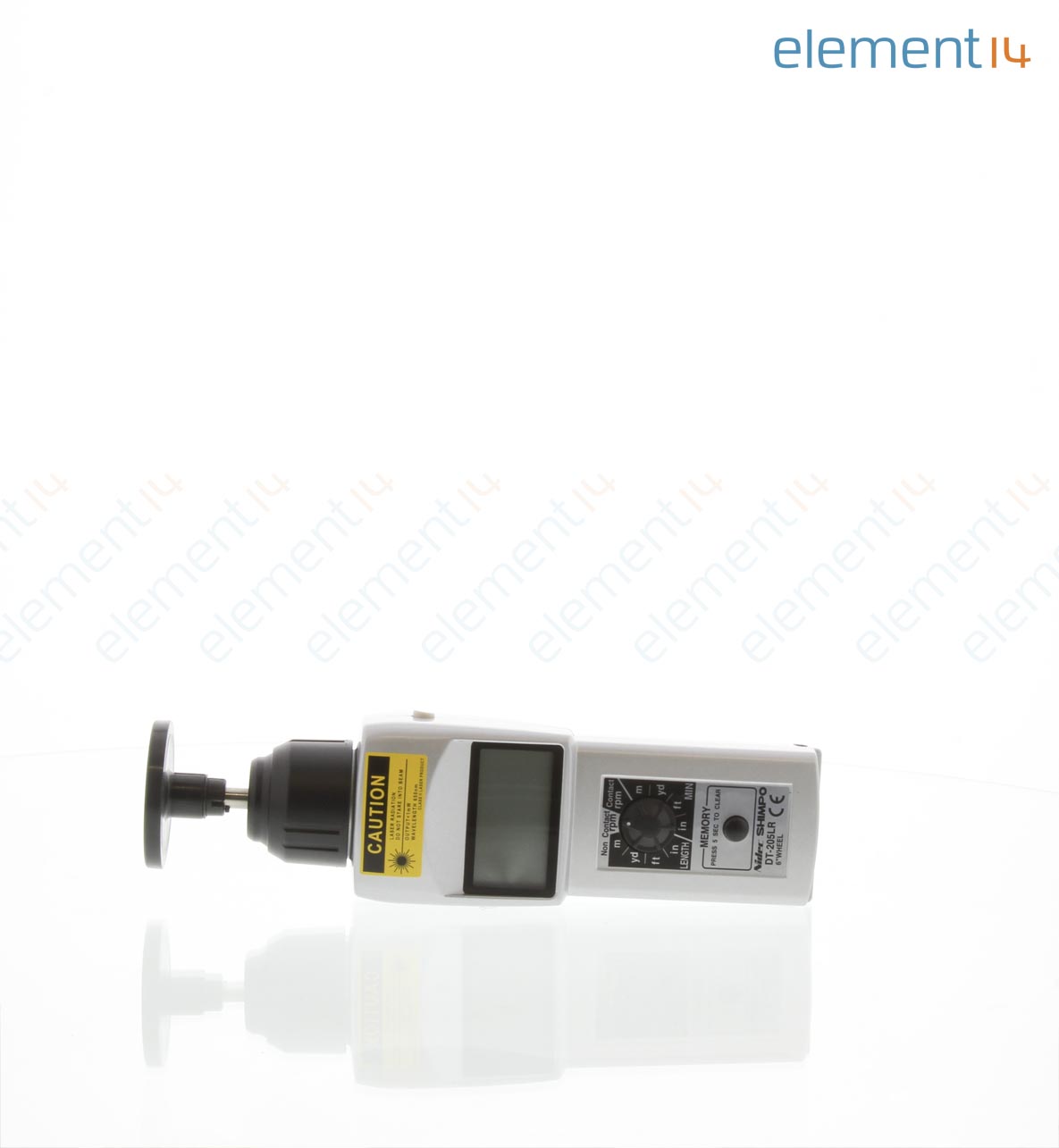

The Shimpo DT-205LR is a battery operated, microprocessor controlled, non-contact/contact tachometer that utilizes laser beam for movement detection. In the non-contact mode a laser beam measures RPM when directed towards a shaft (or any other rotating mechanism marked with a small piece of reflective tape). The included DT-ADP-200LR adapter allows for contact measurement via a rubber tip cone attachment or the included wheel attachment
- Laser beam for movement detection
- Multi-mode capability measures RPM, mPM, YPM, FPM, IPM and total meters, yards, feet and inches
- 13 measurement memory
- Reliable and low maintenance
- Measures from up to 20 ft.
- 5 digit LCD display
- Rugged die cast aluminium housing
- Broad speed range (up to 99,999 RPM)
- Extended battery life (up to 40 hours)
Applications
Test & Measurement, Maintenance & Repair
Contents
Reflective tape, 2 x Cone adapters, Funnel adapter, Master wheel (6" cir.), 3.5" extension shaft, 200LR adapter, Carrying case, 2 x AA 1.5V batteries, NIST certificate, User Manual
