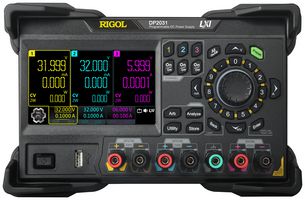

DP2031

DP2031 is a DP2000 series programmable DC power supply with 3 switchable outputs (+32 V/3 A, +32 V/3 A and +6V/10 A) isolated independent channels with a maximum total power of up to 222W. Like all Rigol devices, the Rigol DP2031 features a very well constructed and easy to use interface, which also offers comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure. The Rigol DP2031 features a relative large (10,9 cm / 4.3″) and easy to read LCD color touch screen. In addition to the normal digital displays for voltage, current, and power, these values can also be displayed as signal curves.

• Internal series/parallel connections for CH1 and CH2
• High resolution for measurement of 1μA low range current
• Capability to measure and display wide dynamic ranges of current
• Excellent programming/readback accuracy
• Transient response time, front and rear output terminals, 2-wire or 4-wire remote sense
• A maximum of 512 arbitrary points with dwell time down to 1ms; various built-in basic waveforms
• Low output ripple and noise<350μVrms/2mVpp, command processing time <10ms
• USB HOST, LAN, digital I/O, and RS232 standard
• Automatic switchover between low and high range measurement
• Over voltage, over current, and over temperature protection

Contents

Programmable linear DC power supply, USB cable, One fuse, Power cord (based on destination country), Two pairs of connecting wires (10A).
