S02-04-R

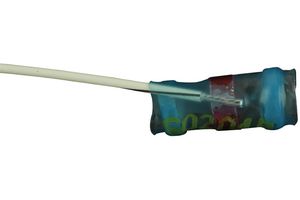

The S02-04-R is a blue solder sleeve Shield Terminator with polyvinylidene fluoride insulator. It contains a colored thermochromic temperature indicator that exhibits a distinct color change when surfaces have reached wetting temperature. It features pre-fluxed solder pre-form provides a controlled soldering process.

• Used for shield-to-ground termination
• Immersion protection resistance
• 150°C Operating temperature

Applications

Industrial, Defence, Military & Aerospace

Notes

TE Quality Alert (26-004): Non-qualified mil-spec products currently on stop-shipment, that contain flux which does not meet ROL1 classification requirement when tested to ANSI J-STD-004 (AS83519/1, AS83519/2, AS83519/3). Flux has been reclassified as ROM1 in accordance with ANSI J-STD-004D specs.
