2194

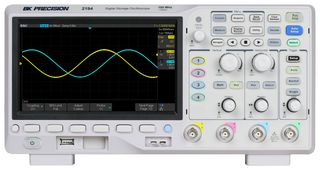

2194 is a digital storage oscilloscope provides 100MHz of bandwidth in a 4-channel configuration with a maximum sample rate of 1GSa/s and a maximum memory depth of 14Mpts. Equipped with a 7" LCD display and a waveform update rate of 100,000 waveforms per second, this device is able to capture infrequent glitches with excellent signal fidelity. Increase productivity with free PC software for remote connectivity through LAN or USBTMC-compliant device ports. Access all the oscilloscopes functions without the need for programming and conveniently capture, save, and analyse measurement results.

• Colour temperature display mode and 256 level intensity grading
• Trigger types: edge, slope, pulse width, window, runt, interval, dropout, pattern and serial
• Segmented acquisition and history function (up to 80,000 segments)
• Automatic measurements for 38 parameters and statistics feature
• FFT and 7 additional math operations
• Masking tool with adjustable limits for pass/fail testing
• USB host port for saving and recalling setups, data, and screenshots
• Multi-language support

Conteúdo

Digital storage oscilloscope, Power cord (1), USB cable (1), Passive probe (4), Certificate of calibration.
