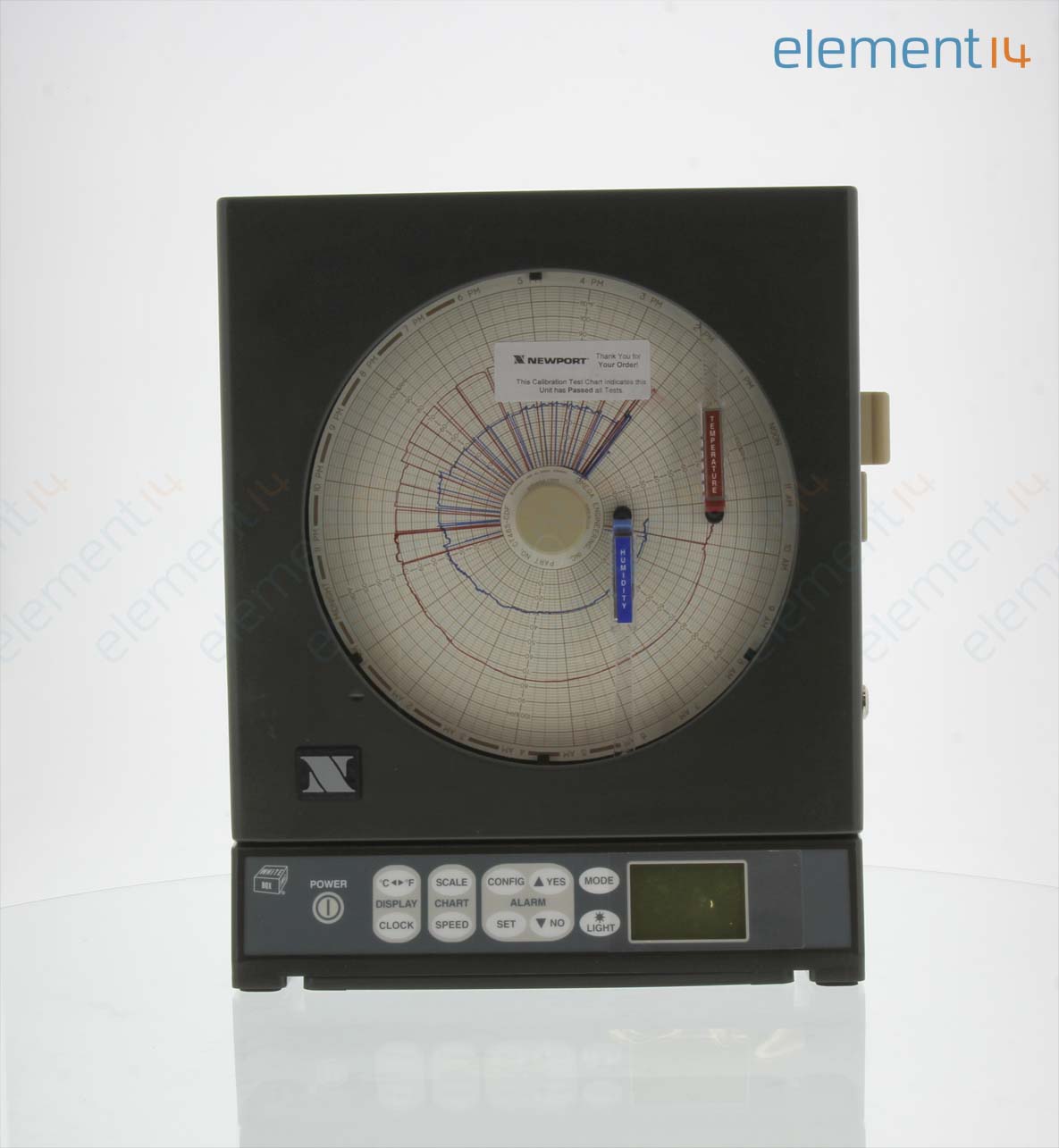

CTXL-TRH-G/N
Recorder, Circular Chart, Superecorder™, 2 Channel, 3 %, 1 %
- Manufacturer:
- NEWPORT ELECTRONICS NEWPORT ELECTRONICS
- Manufacturer Part No:
- CTXL-TRH-G/N
- Newark Part No.:
- 01P0087
- Product Range
- CTXL Series
- Technical Datasheet:
- CTXL-TRH-G/N Datasheet
Product Range Selector (CTXL Series)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- 2 Channel
- :
- -
- :
- -
- :
- 3%
- :
- -
- :
- 1%
- :
- 335mm
- :
- 271mm
- :
- 67mm
- :
- CTXL Series
Technical Documents (4)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Product Overview
This advanced Universal Circular Chart SUPERECORDER™ monitors and records data on a 1, 7, or 32 Days chart. The microprocessor based portable recorder provides many powerful and practical features
- 203 mm (8") Chart paper for 1, 7, or 32 Day recording
- Panoramic Shooting Mode
- Membrane keypad provides full access to all functions of the recorder
- Minimum, Maximum, and Average values are monitored and can be displayed
- Chart data is stored in non-volatile memory
- Chart paper can be re-scaled from the PC via RS232 interface
- Temp/RH sensor probe can be up to 12.2 m (40 feet) away from the recorder
- without any sacrifice in performance
- Battery as well as ac power operation.
- Battery icon displays the status of the battery voltage
- High & Low alarm points set via keypad
- Audible & visual alarms with built-in Relay contacts
- Additional two drive lines to power external Relays
- Wall Mount or Bench top Mount
- Built-in Real time Clock to monitor two channels vs. time
- Electronic Lock/Unlock key for unauthorized access
- RS232 Computer interface allows downloading of recorded chart data to PC
- Recorder comes with two built-in chart lights, and time reference arrow
- Decorative Foot cover for wall mounting
- Double sided Linear Radial Chart Paper
Applications
Test & Measurement
