75586-0007

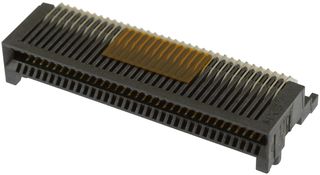

I/O Connector, 68 Contacts, Receptacle, Mini SAS, Surface Mount Right Angle
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No75586-0007Copy
Newark Part No.83K0809
Product RangeiPass, Mini Multi-Lane, PCI Express 75586 Series
Also Known AsGTIN UPC EAN: 822348849550
Your Part Number
Available to Order
Delivery estimated post order confirmations.You will be charged on dispatch.
| Quantity | Price |
|---|---|
| 550+ | $16.050 |
Price for:Each
Minimum: 550
Multiple: 550
$8,827.50
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No75586-0007Copy
Newark Part No.83K0809
Product RangeiPass, Mini Multi-Lane, PCI Express 75586 Series
Also Known AsGTIN UPC EAN: 822348849550
Technical Datasheet
No. of Contacts68Contacts
Connector TypeMini SAS
Contact Termination TypeSurface Mount Right Angle
Product RangeiPass, Mini Multi-Lane, PCI Express 75586 Series
Connector MountingPCB Mount
Contact MaterialCopper Alloy
SVHCNo SVHC (16-Jul-2019)
Product Overview
iPass I/O surface mount right-angle receptacle mates with 74547 series iPass cable assembly.
- High temperature thermoplastic material
- Current rating is 0.5A
- Voltage rating is 30VAC (RMS)/DC
Applications
Communications & Networking
Technical Specifications
No. of Contacts
68Contacts
Connector Type
Mini SAS
Product Range
iPass, Mini Multi-Lane, PCI Express 75586 Series
Contact Material
Copper Alloy
Gender
Receptacle
Contact Termination Type
Surface Mount Right Angle
Connector Mounting
PCB Mount
SVHC
No SVHC (16-Jul-2019)
Alternatives for 75586-0007
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (16-Jul-2019)
