15134-0803

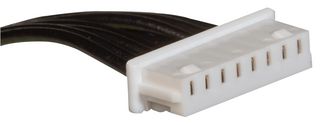

Cable Assembly, PicoBlade Receptacle to PicoBlade Receptacle, 8 Positions, 1.25 mm, 1 Row, 300 mm

MOLEX 15134-0803
×
×

The actual product may differ from image shown

Manufacturer:
MOLEX MOLEX
Manufacturer Part No:
15134-0803
Newark Part No.:
33AC8055
Product Range
PicoBlade OTS 15134 Series
Also Known As:
GTIN UPC EAN: 889056872331
Technical Datasheet:
15134-0803   Datasheet
See all Technical Docs

Product Range Selector (PicoBlade OTS 15134 Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
PicoBlade 8 Position Receptacle

:
PicoBlade Receptacle to PicoBlade Receptacle

:
8Positions

:
PicoBlade 8 Position Receptacle

:
1.25mm

:
1 Row

:
300mm

:
11.8"

:
PicoBlade OTS 15134 Series

:
28AWG

:
Black

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (3)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The 15134-0803 from Molex is a PicoBlade, single row, natural colour female to female 300mm standard cable assembly with 8 circuits. This PicoBlade to PicoBlade off-the-shelf (OTS) cable assembly supports user's design for both prototyping and global production. Point to point single row configurations support both development and production programs. Pin to pin map configurations reduces the need to design cable layout. It also provides ease of design, prototyping and production.
  • Built using UL1061 discrete wires
  • Less engineering time and resources required to use
  • Built-in ISO and TS-16949 certified facilities and meets current market standards
  • Maximum voltage rating of 125V and maximum current rating of 1A
  • 20mohm contact resistance, 250VAC dielectric withstanding voltage, 10Mohm insulation resistance
  • Operating temperature range from -40 to +85°C
  • Mates with PicoBlade 53261, 53047, 53398, 53048 headers
  • Polyester resin, phosphor bronze metal material with tin mating and termination

Applications

Commercial Vehicle, Consumer Electronics, Industrial, Medical
