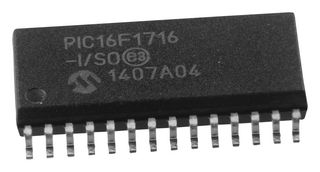

PIC16F1716-I/SO

The PIC16F1716-I/SO is a 8-bit Intelligent Analog Flash Microcontroller combines intelligent analog integration with an extreme low power (XLP) to suit a variety of general purpose applications. This microcontroller delivers on-chip op amps, core independent peripherals (CLC, COG, NCO and zero cross detect) and peripheral pin select, providing for increased design flexibility.

• 14kB Flash program memory
• 1kB Data SRAM
• High endurance flash memory (HEF)
• 128B Non-volatile data storage
• 25 I/O pins
• Four 8-bit timers/one 16-bit timer
• 2 x High-speed comparators
• 2 x Op amps
• 17ch x 10-bit ADC
• One 8-bit DAC and one 5-bit DAC
• Zero cross detect
• 2 x CCP/2 x PWM
• 1 x COG
• 1 x EUSART
• 1 x I²C/SPI
• 4 x Configurable logic cell (CLC)
• 1 x Numerically controlled oscillator (NCO)

Applications

Computers & Computer Peripherals, Automotive

Warnings

ESD sensitive device, take proper precaution while handling the device.
