AC320202
Debugger / Programmer, Isolated, Embedded, For SAM M0+, M4, M7, Motor Control Plug In Modules

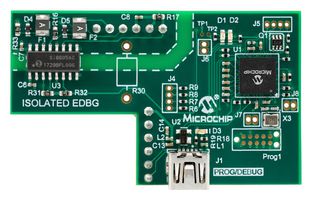

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMICROCHIP
Manufacturer Part NoAC320202
Newark Part No.84AC4391
Your Part Number
Technical Datasheet
5 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $72.090 |
Price for:Each
Minimum: 1
Multiple: 1
$72.09
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMICROCHIP
Manufacturer Part NoAC320202
Newark Part No.84AC4391
Technical Datasheet
IC Product TypeDebugger / Programmer
Silicon Family NameSAM
Core ArchitectureARM
Core Sub-ArchitectureCortex-M0+, Cortex-M4, Cortex-M7
Kit ContentsIsolated Embedded Debugger Interface Board
FeaturesDesigned to Program & Debug the SAM/PIC32C Microcontroller-Based Plug-in Modules
Product Range-
SVHCNo SVHC (25-Jun-2025)
Product Overview
Isolated embedded debugger interface for MCHV. This is an external Isolated debugger/programming interface for use with SAM M0+, M4 and M7 Microchip classic (square) styled motor control plug in modules for the MCHV-3 high voltage motor control development kit. It allows a safe, isolated debugger connection to a PC (It is not required with low voltage hardware).
- Compatible with MA320203-ATSAME70 32bit ARM Cortex M7 motor control PIM
- Compatible with MA320206-ATSAMC21 32bit Cortex M0+ motor control PIM
- Compatible with MA320207-ATSAME54 32bit Cortex M4F motor control PIM
Technical Specifications
IC Product Type
Debugger / Programmer
Core Architecture
ARM
Kit Contents
Isolated Embedded Debugger Interface Board
Product Range
-
Silicon Family Name
SAM
Core Sub-Architecture
Cortex-M0+, Cortex-M4, Cortex-M7
Features
Designed to Program & Debug the SAM/PIC32C Microcontroller-Based Plug-in Modules
SVHC
No SVHC (25-Jun-2025)
