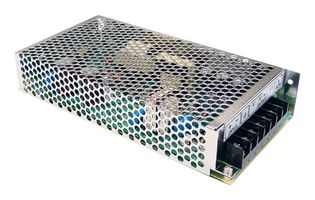

SD-100B-24
Isolated Chassis Mount DC/DC Converter, ITE, 2:1, 100 W, 1 Output, 24 V, 4.2 A
- Manufacturer:
- MEAN WELL MEAN WELL
- Manufacturer Part No:
- SD-100B-24
- Newark Part No.:
- 44AC7445
- Product Range
- SD-100 Series
- Technical Datasheet:
- SD-100B-24 Datasheet
Product Range Selector (SD-100 Series)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- ITE
- :
- 2:1
- :
- 100W
- :
- 1 Output
- :
- 24V
- :
- 4.2A
- :
- -
- :
- -
- :
- -
- :
- 1.5kV
- :
- Enclosed
- :
- 24V
- :
- Fixed
- :
- 98mm
- :
- 38mm
- :
- 199mm
- :
- 19V
- :
- 36V
- :
- SD-100 Series
Technical Documents (1)
Product Overview
SD-100B-24 is SD-100 series 100W single output DC-DC converter. It includes short circuit, overload, over voltage protection. Approved by EAC TP TC 004 approved, design refer to AS/NZS 62368.1.
- Output DC voltage is 24V, output rated current is 4.2A, output rated power is 100.8W
- Typical efficiency is 78%
- Input voltage range from 19 to 36VDC
- 2:1 wide input range, 1500VAC I/O isolation
- Built-in EMI filter, low ripple noise, low cost, high reliability
- 2 years warranty
- Working temperature range from -10 to +60℃
- Dimension is (L x W x H) 7.834 x 3.858 x 1.594inch
