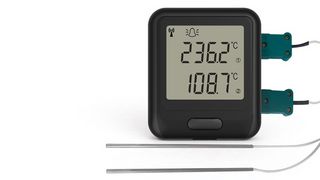

EL-WIFI-21CFR-DTC

The EL-WIFI-21CFR-DTC from Lascar is a 21CFR Wi-Fi dual channel thermocouple probe data logging sensor. This Wi-Fi enabled dual channel data logger can remotely monitor an environment using two inter-changeable J, K or T type thermocouples. Supplied with two K Type probes, its measurement range out of the box measures from 0 to 200°C (32 to 392°F). Data is uploaded periodically using a standard Wi-Fi network without the need to physically collect and connect the unit to a PC. Data is streamed wirelessly to the EasyLog™ 21CFR Cloud. The sensor is IEEE 802.11bgn (2.4GHz) compliant, supports WEP, WPA/WPA2 encryption and enterprise networks (PEAP, TTLS, FAST).

• Probe measurement: 0 to 200°C(32 to 392°F) K-type(provided), -200 to +1350°C(-328 to 2462°F) K-type
• Probe measurement: -200 to +1190°C(-328 to +2174°F) J-type, -200 to +390°C(-328 to +734°F) T- type
• Temperature measurement range -270 to +1300°C (-454 to +2372°F) (allows interchangeable probes)
• Temperature measurement resolution is 0.1°C (0.2°F)
• User selectable between 10seconds and 12hours logging rate
• Battery life of 6 months
• Configurable high and low alarms with indicator
• Operating temperature range (logger) -20°C to +60°C
• USB supply voltage range from 4.5VDC to 5.5VDC
• Data logger is freestanding, but can be attached to a wall or surface using the bracket provided

Contents

21CFR remote Wi-Fi temperature sensor, Wall mounting bracket for EL-Wi-Fi sensors, 2x 1.5m K-type thermocouple with stainless steel probe, USB type A to micro B cable.
