| Manufacturer | IDEC |
|---|---|
| Manufacturer Part No | HE1B-M1Copy |
| Manufacturer Standard Lead Time | 30 weeks |
| Newark Part No. | 84C2718 |
| Product Range | HE1B Series |
| Your Part Number | |
| Technical Datasheet |
26 In Stock
Need more?
FREE Standard Delivery
on orders over $150
Priority Delivery available
order before 8pm EST
| Quantity | Price |
|---|---|
| 1+ | $27.140 |
| 5+ | $25.140 |
| 10+ | $23.400 |
| 25+ | $21.400 |
| 50+ | $20.970 |
| 100+ | $20.540 |
| 250+ | $20.120 |
| 5000+ | $19.690 |
Price for:Each
Minimum: 1
Multiple: 1
$27.14
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | IDEC |
|---|---|
| Manufacturer Part No | HE1B-M1Copy |
| Manufacturer Standard Lead Time | 30 weeks |
| Newark Part No. | 84C2718 |
| Product Range | HE1B Series |
| Technical Datasheet | |
| Product Range | HE1B Series |
| Pushbutton Switch Type | Enabling Switch |
| Panel Cutout Diameter | - |
| Contact Configuration | SPST-NO |
| Switch Operation | Off-On-Off |
| Contact Voltage DC Nom | 125V |
| Contact Current Max | 5A |
| Pushbutton Actuator Style | Rectangular Raised |
| Actuator / Cap Colour | Yellow |
| Contact Current AC Max | 3A |
| Contact Voltage VAC | 125V |
| Contact Current DC Max | 2A |
| Contact Voltage VDC | 30V |
| IP Rating | IP40 |
| Switch Mounting | Panel Mount |
| Switch Terminals | Screw |
| Illumination Color | Non Illuminated |
| Panel Cutout (H x W) | - |
| SVHC | No SVHC (16-Jul-2019) |
Product Overview

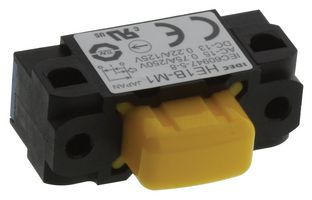

The HE1B-M1 is a 3-position single-pole single-throw (SPST) Enabling Switch with M3 screw side mounting. The switch with ergonomically designed OFF-ON-OFF, direct opening action mechanism for shifting from position-2 (ON) to position-3 (OFF), switch does not turn ON while being released from position-3 (OFF when pressed) to position-1 (OFF when released). Ideal for installing in teach pendants and other enabling devices and to avoid hazards. Meets IEC60204-1, EN 60947-5-1/IEC 60947-5-1 standards.
- Reliable performance in compact and lightweight
- Solder terminal
- Fast acting type fuse for short-circuit protection
- 0.5 to 0.8Nm Tighting torque
- -25 to 60°C Operating temperature range
Applications
Industrial
Technical Specifications
| Product Range | HE1B Series |
|---|---|
| Panel Cutout Diameter | - |
| Switch Operation | Off-On-Off |
| Contact Current Max | 5A |
| Actuator / Cap Colour | Yellow |
| Contact Voltage VAC | 125V |
| Contact Voltage VDC | 30V |
| Switch Mounting | Panel Mount |
| Illumination Color | Non Illuminated |
| SVHC | No SVHC (16-Jul-2019) |
| Pushbutton Switch Type | Enabling Switch |
|---|---|
| Contact Configuration | SPST-NO |
| Contact Voltage DC Nom | 125V |
| Pushbutton Actuator Style | Rectangular Raised |
| Contact Current AC Max | 3A |
| Contact Current DC Max | 2A |
| IP Rating | IP40 |
| Switch Terminals | Screw |
| Panel Cutout (H x W) | - |
Technical Docs (1)
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (16-Jul-2019) |
| Download Product Compliance Certificate | Product Compliance Certificate |
