Product Information
ManufacturerHONEYWELL
Manufacturer Part No3MN19Copy
Manufacturer Standard Lead Time8 weeks
Newark Part No.39B7367
Product RangeMN Series
Technical Datasheet
Microswitch TypeStandard
Microswitch ActuatorPlunger
Contact ConfigurationDPDT
Switch TerminalsScrew
Contact Current Max15A
Contact Voltage DC Nom230V
Product RangeMN Series
Contact Voltage AC Nom600V
Operating Force Max11ozf
SVHCNo SVHC (07-Jul-2017)
Product Overview

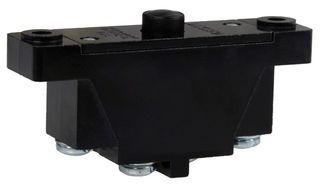

The 3MN19 is a double-pole double-throw (DPDT) Basic Switch with a pin plunger and silver contacts. This MN series arc-resistant plastic basic switch comes with a general purpose phenolic housing and supports screw termination. This MICRO SWITCH™ switch provides easy gang mounting and recommended for lower force. The space between terminals reduces possibility of shorting.
- Long mechanical life to 10000000 cycles at 95% survival
- 1.11N Minimum release force
- -55 to 85°C Operating temperature range
Applications
Industrial
Technical Specifications
Microswitch Type
Standard
Contact Configuration
DPDT
Contact Current Max
15A
Product Range
MN Series
Operating Force Max
11ozf
Microswitch Actuator
Plunger
Switch Terminals
Screw
Contact Voltage DC Nom
230V
Contact Voltage AC Nom
600V
SVHC
No SVHC (07-Jul-2017)
Technical Docs (1)
Alternatives for 3MN19
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Jul-2017)
