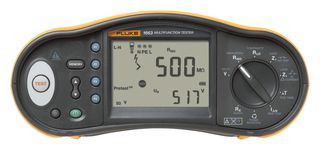

FLK-1663 SCH

The FLK-1663 UK from Fluke is a multifunction installation tester with UK plug type. It is ideal for professional users with full-featured functionality, advanced measurement capability yet it is still easy to use. It quickly and efficiently tests all local regulations, protecting appliances that may be inadvertently connected to the system under test and making it easy to share test results over smartphone. It features measures continuity at L-N, N-PE inputs, test smooth dc sensitive RCDs (Type B), earth resistance, voltage & frequency, wiring polarity checker, detects broken N wires, insulation resistance, continuity & resistance, measure motor windings with continuity test, loop & line resistance, prospective earth fault current (PEFC/IK), prospective short circuit current (PSC/IK), RCD switching time, RCD tripping level (ramp test), measures trip time & current for RCD type A & AC in one test, RCD variable current, automatic RCD test sequence and phase sequence indicator.

• On/off switchable auto-start for RCD & looptest
• Self test & Illuminated display
• Time and date (when used with optional FlukeView software)
• Z-max memory, Memory and computer interface
• Rotary dial knob indicates clearly which function is selected
• Large display with backlight, clear symbols and wide viewing angle for easy, safe readings
• Dimension of 10cm x 25cm x 12.5cm and weight of 1.3 Kg including batteries
• IP40 sealing protection
• Complies with EN61010-1 (2001-02), UL61010, ANSI/ISA -s82.02.01 2000 and CAN/CSA c22.2 number 1010
• CAT III / 500V, CAT IV 300V overvoltage protection

Applications

Test & Measurement

Contents

FLK-1663 UK multifunction installation tester, 6x AA (IEC LR6) cell batteries, C1600 hard carrying case, zero adapter, heavy duty mains cord, STD standard test lead set, padded carrying and waist strap, quick reference guide, TP165X remote control probe and lead, user's manual on CD-ROM.
