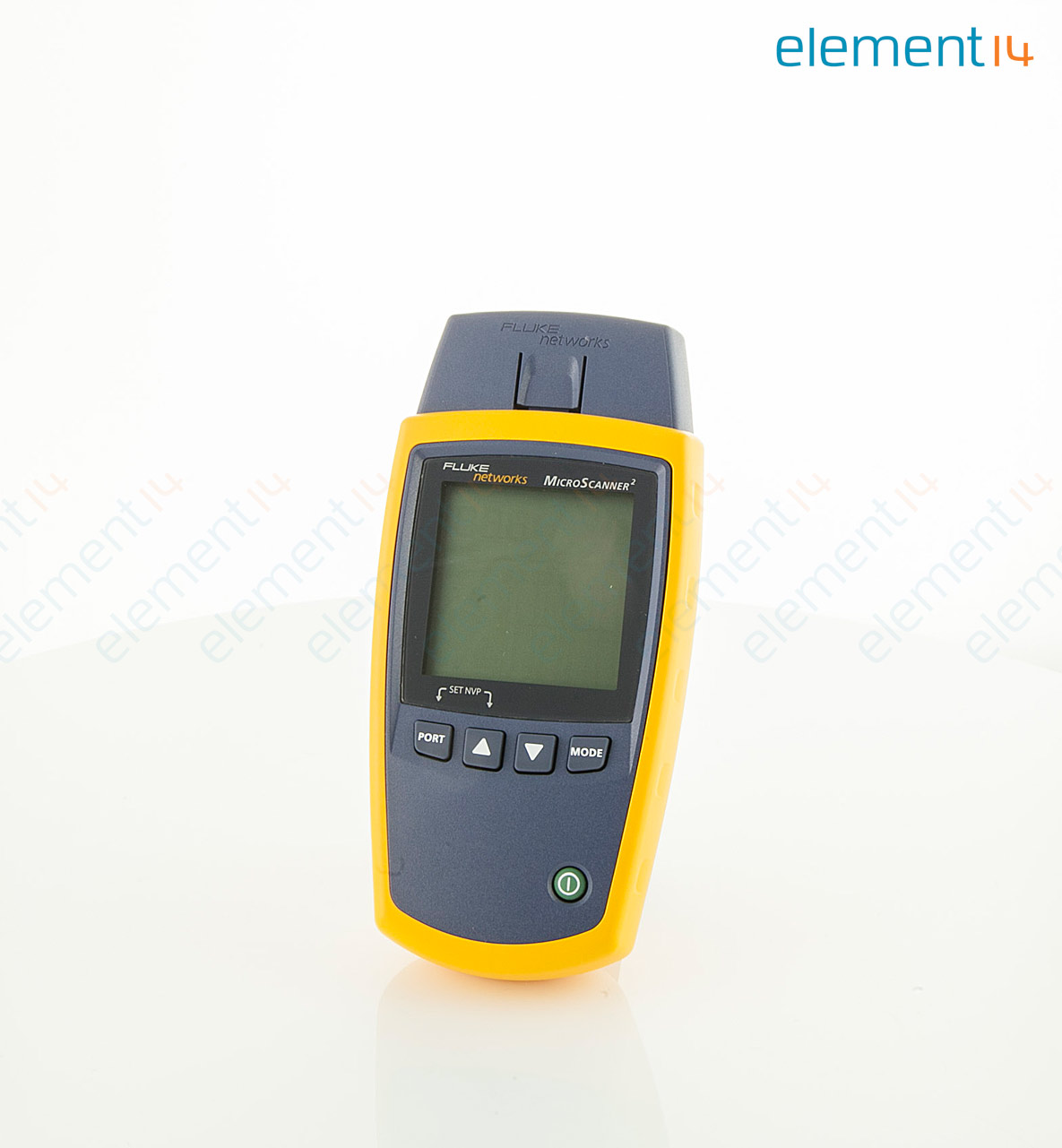

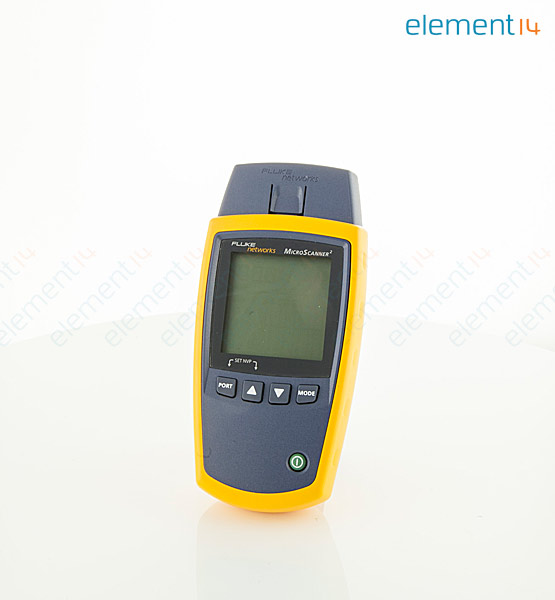

FLUKE NETWORKS MS2-100

Cable Continuity Tester, MicroScanner2 Verifier, 163 mm, 73 mm, 36 mm

FLUKE NETWORKS MS2-100
Video
360°
×

The actual product may differ from image shown

Manufacturer Part No:
MS2-100
Newark Part No.:
47M2208
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Also Known As:
754082054368
Technical Datasheet:
MS2-100   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (MicroScanner 2 Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
LCD

:
-

:
PoE

:
MicroScanner 2 Series

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (6)

Product Overview

Streamline verification testing: The MicroScanner2 Cable Verifier presents a revolutionary change in voice, data, and video cable testing. It starts by taking results from what was four different test modes and displaying them all at once – graphical wiremap, pair lengths, distance to fault, cable ID, and far end device. What’s more, its integrated RJ11, RJ45, and coax cable test ports support virtually any type of low-voltage cable testing with no need for awkward adapters. The end result is reduced test time and technician error. That makes high-quality installations more efficient than ever. Rule out service problems fast: Today’s communications technicians have a lot more problems to deal with than just the cabling. They have to rule out a whole host of potential cable and service issues before determining the cause of a connection problem. Is there telephone voltage? What’s the polarity? Is there an Ethernet switch at the far end? Is PoE available? MicroScanner2 acknowledges this, giving technicians high power vision to verify today’s most common voice, data, and video services. That means faster, more comprehensive troubleshooting.
  • Revolutionary Interface - Graphical wiremap, length, cable ID, and distance to fault displayed on one screen
  • Multimedia Support – tests all common media types including RJ11, RJ45, Coax, with no need for adapters
  • IntelliTone Toning – trace virtually any cable or wire pair with IntelliTone digital and analog toning
  • VDV Service Detection – verifies today's media services, including 10/100/1000 Ethernet, POTS, & PoE
  • Rugged Housing - Integrated rubber holster enhances grip and makes it durable enough for the toughest jobs
  • Oversized Display - Large, backlit LCD makes results crystal clear whether in bright sunshine or in a dark closet

Applications

Sensing & Instrumentation, Signal Processing, Test & Measurement, Communications & Networking, Portable Devices

Contents

MicroScanner2 Cable Verifier with main wiremap adapter, Multi-language Getting Started Guide, User CD, Batteries, and Fluke Networks Carry Pouch.

Also Known As

754082054368
