IDRN-RTD/N

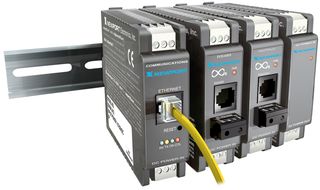

The IDRN-RTD/N is a Programmable Signal Conditioner/Transmitter provides highly accurate, stable, isolated measurement of RTD temperature sensors. The iDRN-RTD provides a fully scalable analogue output that is proportional to the input signal. The output of the iDRN-RTD can be user set for 0 to 10 V, 4 to 20mA or 0 to 20mA. Input scaling and configuration of other operating parameters is accomplished by connecting to a standard RS-232 port of a personal computer and using the Windows-based setup software. Once configured the settings may be stored in non-volatile memory and the unit disconnected from the PC. The Optional EIT-D iServer module can connect up to thirty-two (32) iDRX RS-485 Signal Conditioners to an Ethernet network and the Internet using standard TCP/IP protocol. The iServer can also be used as a simple Serial to Ethernet "bridge" or converter to connect a single iDRN RS-232 device to an Ethernet network and the Internet.

• Software selectable input types
• 100ohm Pt, 500ohm Pt, 1000ohm Pt
• 1800V Isolation
• 0.1°C Resolution
• ±0.5°C Accuracy
• Free setup and configuration software
• Factory setup and configuration available at No Charge (for iDRN Analogue Output models)
