RP8100B1M1CEBLKBLKNIL

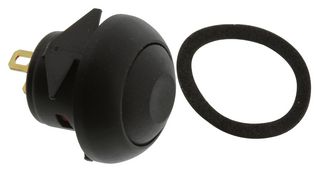

Industrial Pushbutton Switch, RP8100 Series, 13.6 mm, SPST-NO-DM, Off-(On), Round, Black
Image is for illustrative purposes only. Please refer to product description.
ManufacturerE-SWITCH
Manufacturer Part NoRP8100B1M1CEBLKBLKNIL
Newark Part No.15N8757
Product RangeRP8100 Series
Technical Datasheet
Available to Order
Delivery estimated post order confirmations.You will be charged on dispatch.
| Quantity | Price |
|---|---|
| 100+ | $3.450 |
| 250+ | $3.350 |
Price for:Each
Minimum: 210
Multiple: 70
$724.50
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerE-SWITCH
Manufacturer Part NoRP8100B1M1CEBLKBLKNIL
Newark Part No.15N8757
Product RangeRP8100 Series
Technical Datasheet
Panel Cutout Diameter13.6mm
Product RangeRP8100 Series
Contact ConfigurationSPST-NO-DM
Switch OperationOff-(On)
Pushbutton Actuator StyleRound
Actuator / Cap ColourBlack
Contact Current Max125mA
Contact Current AC Max125mA
Contact Voltage VAC125V
Contact Voltage AC Nom125V
Contact Current DC Max100mA
Contact Voltage VDC50V
Switch MountingPanel, Snap-In
IP RatingIP67
Switch TerminalsSolder Lug
Illumination ColorNon Illuminated
Panel Cutout (H x W)-
SVHCNo SVHC (27-Jun-2018)
Technical Specifications
Panel Cutout Diameter
13.6mm
Contact Configuration
SPST-NO-DM
Pushbutton Actuator Style
Round
Contact Current Max
125mA
Contact Voltage VAC
125V
Contact Current DC Max
100mA
Switch Mounting
Panel, Snap-In
Switch Terminals
Solder Lug
Panel Cutout (H x W)
-
Product Range
RP8100 Series
Switch Operation
Off-(On)
Actuator / Cap Colour
Black
Contact Current AC Max
125mA
Contact Voltage AC Nom
125V
Contact Voltage VDC
50V
IP Rating
IP67
Illumination Color
Non Illuminated
SVHC
No SVHC (27-Jun-2018)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2018)
