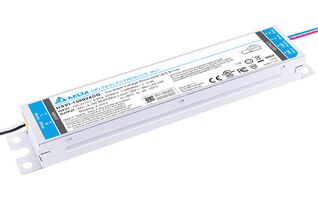

USVI-100024DG

USVI-100024DG is a USVI S24 series LED driver. The fixed output voltage LED drivers comes with affordable and reliable features. Compatible with signage from any manufacturer. 24V major output voltage with 1 or 2 multi-channel selection for different lumen application. Meet north America safety certifications, and compliant with FCC immunity/emissions/harmonic requirements. This is designed and rigorously tested to work in various indoor/signage LED lighting conditions. It includes over voltage, overload, overcurrent, short circuit, over temperature protection. Approved by UL 8750, class P, type HL. output meet class 2 of UL1310. Application includes LED lighting.

• Input voltage range from 120 to 277VAC
• Output power is 100W, output current range from 0.10A to 4.15A, 1 output channel
• Typical efficiency is 89.5% (277VAC, 100% load typical and tested after 30 minutes warm up)
• Constant current design, class 2 output
• Multi-channel output and independent operating
• Dry & damp location rated for signage application
• Metal sheet casing, white color, 0 to 10V dimming
• Ambient operating temperature range from -40°C to +55°C
• Dimension is (L x W x D) 9.50 x 1.70 x 1.00inch
