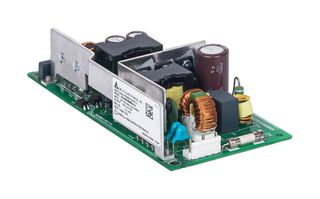

PJ-24V150WBNA

PJ-24V150WBNA is a PJ series 150W AC to DC power supply comes with universal AC input at 85VAC to 264VAC. Other features include low leakage / Inrush current and conformal coating on the PCBAs to provide protection against dust and chemical pollutants. The built-in active PFC provides PF <gt/> 0.97 and fulfils Harmonic Current Emission according to IEC/EN/BS EN 61000-3-2. The PJ series is certified for EMC standards according to EN/BS EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment and EN/BS EN 55032 for Industrial Technology Equipment (ITE) radio-frequency equipment and EMS according to EN/BS EN 55024. In addition, the detachable input and output connectors are from JST and only recognized Japanese capacitors are used.

• Single phase power supply
• Rated output voltage is 24VDC
• Rated output current is 6.30A
• Open frame type
• No remote on/off
• Delta standard
• Long life capacitors
• Convection cooling
• Dimension (L x W x H) is 6.2inch x 2.95inch x 1.45inch
