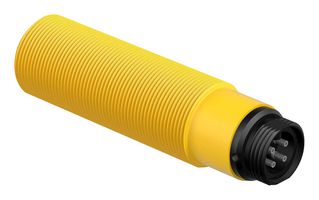

SM306EQ

SM306EQ is a SM30 series 150M range opposed mode, leakproof barrel sensor for demanding industrial applications. It is economical opposed mode senso pairs in leakproof (NEMA 6P, IEC IP67 rated) 30mm threaded barrel VALOX® housings. Its size, shape, leakproof construction, mounting options, and price make this ideally suited for use in applications which undergo high-pressure washdown, such as car washes and food processing. This sensor operates from 10-30VDC. Emitters draw 25milliamps; receivers draw 20milliamps maximum continuous, exclusive of load current. Receiver outputs are complementary: one normally open (N.O.) and one normally closed (N.C.), each capable of switching up to 150milliamps (continuous). Electronics are fully epoxy-encapsulated for maximum resistance to mechanical shock and vibration.

• Euro-type QD fitting
• 200feet sensing range
• Infrared, 880nanometers sensing beam
• Off-state leakage current is <lt/>1microamp at 30VDC
• M30x1.5 threaded VALOX® tubular housing with positive sealing at both ends
• Operating temperature range from -40°C to +70°C
• Response time: 3milliseconds (on), 1.5milliseconds (off)
• IP67 rating, emitter sensing mode
• 375µs repeatability, acrylic lens
• Encapsulated, quick disconnect

Warnings

Never use these products as sensing devices for personnel protection. Their use as safety devices may create an unsafe condition which could lead to serious injury or death.
