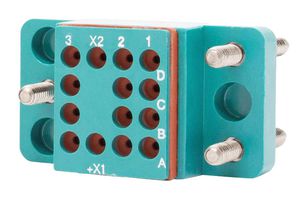

Relay Socket, with Contact, Panel, Stud, 16 Pins, 5 A, RSE Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMPHENOL PCD
Manufacturer Part NoM12883/44-03 WC
Newark Part No.77AK8204
Product RangeRSE Series
Also Known AsRSE120155
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 22 week(s)
| Quantity | Price |
|---|---|
| 1+ | $66.420 |
| 50+ | $63.090 |
| 100+ | $59.940 |
| 250+ | $56.940 |
| 500+ | $54.100 |
| 1000+ | $52.470 |
Price for:Each
Minimum: 25
Multiple: 1
$1,660.50
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL PCD
Manufacturer Part NoM12883/44-03 WC
Newark Part No.77AK8204
Product RangeRSE Series
Also Known AsRSE120155
Technical Datasheet
Socket MountingPanel
Socket TerminalsStud
No. of Pins16Pins
Current Rating5A
Voltage Rating-
Product RangeRSE Series
SVHCTo Be Advised
Product Overview
M12883/44-03 WC is a military relay socket for use with M83536/5-006, -014, -022, -030, M83536/2-006, -015, -024, -035, M83536/7-022 military relays. It features state-of-the-art ultrasonically bonded interfaces between the dielectric components, eliminating air paths and providing protection against moisture and degradation. This quick-mount relay socket snaps into standard aircraft panel cutouts, eliminating the need for mounting hardware. This simplifies installation and dramatically reduces weight and installation time.
- Relay type: 4 pole / 5 amp
- Temperature: -65ºC to 125ºC
- Insulation resistance: 1000Megaohms minimum
- Dielectric withstanding voltage: 1000VRMS at sea level 500VRMS at 80,000ft
- Socket body: polyetherimide per ASTM-D5205
- Grommet: silicone rubber per A-A-59588
- Hardware: stainless steel or steel w/cadmium chromate finish
- Contact retainers: stainless steel
- Socket contacts: stainless steel, hard gold plated in accordance with SAE-AMS-2422
