10018783-11111TLF

Card Edge Connector, PCI, Dual Side, 1.57 mm, 64 Contacts, Through Hole Mount, Straight, Solder

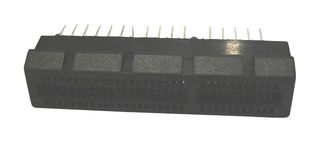

AMPHENOL ICC 10018783-11111TLF
×
×

The actual product may differ from image shown

Manufacturer Part No:
10018783-11111TLF
Newark Part No.:
53W2137
Product Range
FCI 10018783 Series
See all Technical Docs

Product Range Selector (FCI 10018783 Series)

See all from this product range

Product Overview

The 10018783-11111TLF is a 64-way 2-row PCI Express Card Edge Female Connector, 2mm row pitch and solder termination. Copper alloy contacts with gold over nickel finish. This 1.0mm pitch, vertical card edge connector is used to implement PCI Express® architecture in desktop PCs, workstations and servers. The base connector family offers one to 16 high-speed serial PCI Express Lanes. Each serial lane supports 2.5Gbps (per direction) in a 100Ω Gen1 system or 5.0Gbps in a Gen2 system with an 85Ω differential environment. Base connector range offers 1, 4, 8 or 16 serial PCI Express links to scale to different bandwidth requirements.
  • High-temperature thermoplastic (UL94V-0) for reflow or thermoplastic (UL94V-0) for wave soldering

Applications

Computers & Computer Peripherals, Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Dual Side

:
64Contacts

:
1.57mm

:
Card Edge

:
64 Contacts

:
PCIe

:
1mm

:
Through Hole Mount

:
Straight

:
Receptacle (View Associated Connectors)

:
Solder

:
2Rows

:
Copper Alloy

:
15µ" Gold Plated Contacts

:
-

:
Nylon (Polyamide) Body

:
FCI 10018783 Series

:
Gold Plated Contacts

Find similar products Choose and modify the attributes above to find similar products.
